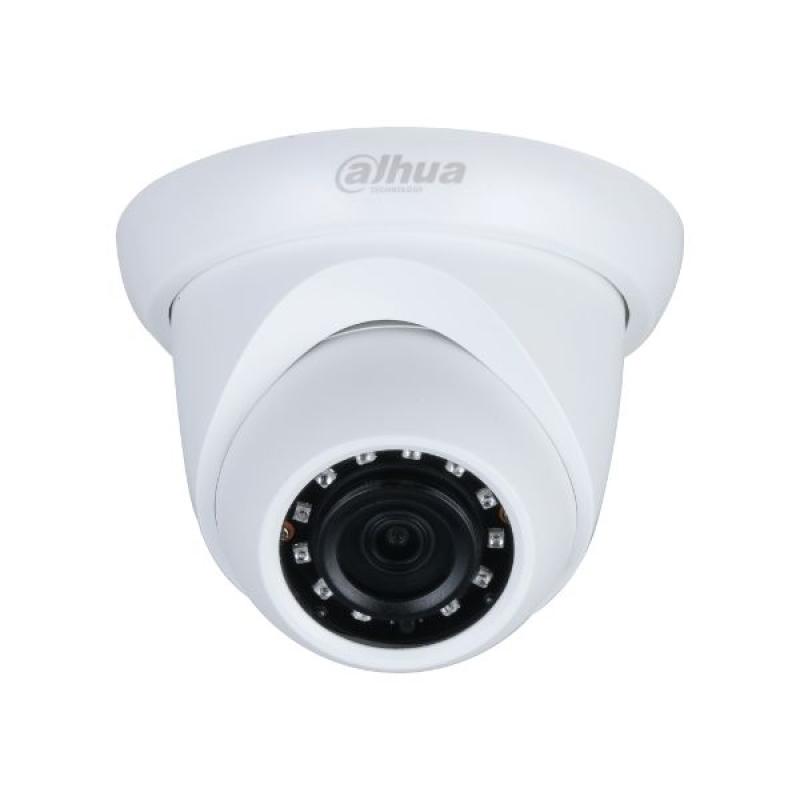

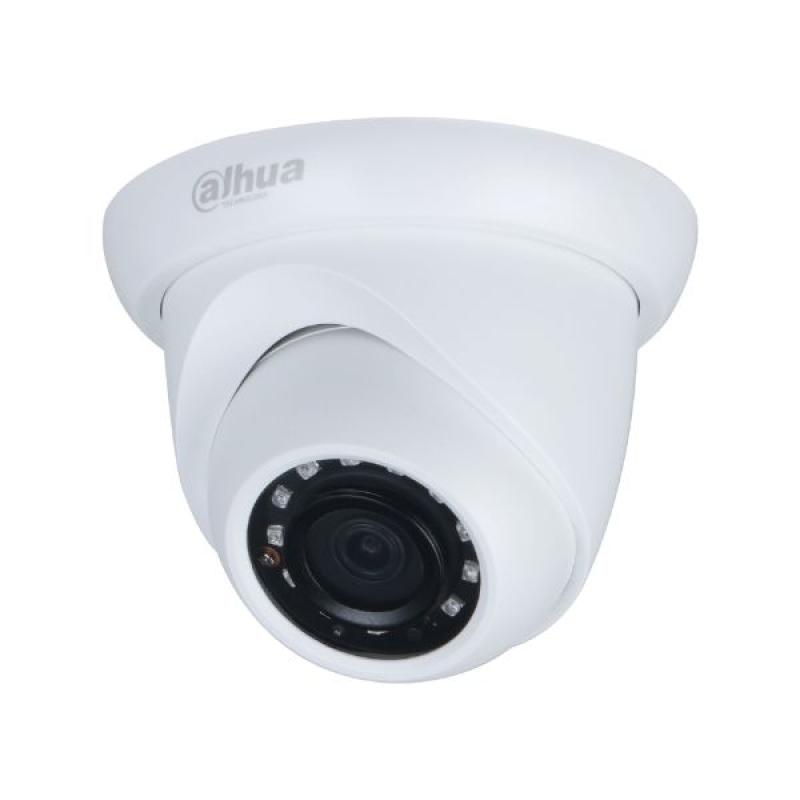

Dahua DH-IPC-HDW1230S-S5 IR Dome Network Camera
Key FeaturesModel: DH-IPC-HDW1230S-S52MP resolution (1080p)Smart IR with up to 30m night visionH.265+ compression
Dahua DH-IPC-HDW1230S-S5 IR Dome Network Camera
Quick Overview
- Model: DH-IPC-HDW1230S-S5
- 2MP resolution (1080p)
- Smart IR with up to 30m night vision
- H.265+ compression
Dahua DH-IPC-HDW1230S-S5 IR Dome Network Camera
| Group | Specification | Details |
|---|---|---|
| Camera | Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920(H) × 1080(V) | |
| ROM | 16 MB | |
| RAM | 64 MB | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto / Manual, 1/3s ~ 1/100000s | |
| Min. Illumination | 0.01 Lux @ F2.0 | |
| S/N Ratio | >56 dB | |
| Illumination Distance | 30m (98.4ft) | |
| Illuminator Control | Auto / Manual | |
| Illuminator Number | 12 IR LEDs | |
| Pan/Tilt/Rotation Range | Pan: 0°~355°, Tilt: 0°~78°, Rotation: 0°~360° | |
| Lens | Lens Type | Fixed-Focal |
| Lens Mount | M12 | |
| Focal Length | 2.8mm / 3.6mm | |
| Max Aperture | F2.0 | |
| Field of View | 2.8mm: H 102°, V 54°, D 120° 3.6mm: H 84°, V 45°, D 100° | |
| Iris Control | Fixed | |
| Close Focus Distance | 2.8mm: 0.5m 3.6mm: 0.8m | |
| DORI Distance | 2.8mm Lens | Detect: 38.6m, Observe: 15.4m, Recognize: 7.7m, Identify: 3.9m |
| 3.6mm Lens | Detect: 49.7m, Observe: 19.9m, Recognize: 9.9m, Identify: 5.0m | |
| Video | Video Compression | H.265 / H.264 / H.264B / MJPEG (Sub Stream Only) |
| Smart Codec | Smart H.265+ / Smart H.264+ | |
| Stream Capability | 2 Streams | |
| Main Stream Frame Rate | 1920×1080: 1fps ~ 25/30fps | |
| Sub Stream Frame Rate | 704×576: 1fps ~ 25fps 704×480: 1fps ~ 30fps | |
| Resolution | 1080p, 1.3M, 720p, D1, VGA, CIF | |
| Bit Rate Control | CBR / VBR | |
| Video Bit Rate | H.264: 32Kbps ~ 6144Kbps H.265: 12Kbps ~ 6400Kbps | |
| Day/Night | Auto (ICR) / Color / B&W | |
| Image Features | BLC | Yes |
| HLC | Yes | |
| WDR | DWDR | |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom | |
| Gain Control | Auto / Manual | |
| Noise Reduction | 3D NR | |
| Motion Detection | OFF / ON (4 Areas, Rectangle) | |
| Region of Interest (RoI) | Yes (4 Areas) | |
| Smart Illumination | Yes | |
| Image Rotation | 0° / 90° / 180° / 270° | |
| Mirror | Yes | |
| Warranty | Warranty Period | 1 Year |
The Dahua DH-IPC-HDW1230S-S5 IR Dome Network Camera is a small and strong 2MP dome IP camera that provides detailed and clear video surveillance. Its 1/2.8" progressive scan CMOS sensor allows it to capture clear Full HD (1920 x 1080) video at 30 frames per second, which makes it perfect for use in offices, homes, small enterprises, and indoor monitoring systems.
The camera's integrated Smart IR LEDs provide up to 30 meters of night vision, enabling crisp black-and-white video recording even in total darkness. H.265+ video compression, which the camera employs, conserves data and bandwidth without compromising image quality.
The DH-IPC-HDW1230S-S5 may be discreetly integrated into any setting because of its elegant dome design. PoE (Power over Ethernet) capability allows for hassle-free power and network connectivity with a single cable, and it's simple to install.
This IP67 weatherproof camera is suitable for outside installation and can withstand severe weather conditions, including dust and rain.
Overall, the Dahua DH-IPC-HDW1230S-S5 IR Dome Network Camera offers consistent performance, ease of setup, and exceptional value in a small and sturdy design, making it ideal for both home and commercial security needs.
What is the price of the Dahua DH-IPC-HDW1230S-S5 IR Dome Network Camera in Bangladesh?
The latest price of the Dahua DH-IPC-HDW1230S-S5 IR Dome IP CAMERA in Bangladesh is 4,150 BDT. You can buy the Dahua DH-IPC-HDW1230S-S5 IR Dome Network Camera from us at the best price. You can either purchase it through our website or visit our office directly. Contact: +88 01821-051012
