Product Details

Jovision JVS-ND7616-HP 16CH H.265 4K NVR

Key FeaturesModel: JVS-ND7616-HPStorage: Up to 10TBVideo: 16CH H.265Display: 4K PreviewUI: VStar GUIAudio: Built-in Speaker

Ready to order Jovision

Jovision JVS-ND7616-HP 16CH H.265 4K NVR

Product Id: JS5WZ-591
Special Price BDT 8,250.00 BDT 9,500.00
Regular Price BDT 9,500.00
Save BDT 1,250

Quick Overview

  • Model: JVS-ND7616-HP
  • Storage: Up to 10TB
  • Video: 16CH H.265
  • Display: 4K Preview
  • UI: VStar GUI
  • Audio: Built-in Speaker
Brand Jovision
Category NVR

Jovision JVS-ND7616-HP 16CH 4K NVR

The Jovision JVS-ND7616-HP 16CH 4K NVR is a high-performance network video recorder designed to deliver professional surveillance for medium to large-scale security systems. With support for up to 16 IP camera channels, it is ideal for businesses, warehouses, office complexes, schools, and residential communities that require extensive monitoring coverage. Its robust performance, advanced video compression, and user-friendly design make it a reliable choice for modern surveillance needs.

One of the standout features of this NVR is its support for 4K ultra-high-definition resolution, which ensures sharp, clear, and detailed video recording. High-resolution video is essential for identifying critical details such as faces, license plates, or objects in busy or sensitive environments. By capturing every detail with clarity, the Jovision JVS-ND7616-HP allows users to review footage accurately and respond promptly to incidents.

The NVR utilizes H.265 video compression technology, which significantly reduces bandwidth and storage requirements without compromising video quality. Compared to older H.264 systems, H.265 allows longer recording times on the same storage devices and ensures smooth video streaming over networks. This makes the device both efficient and cost-effective, allowing businesses and homeowners to store more footage without frequently upgrading storage hardware.

With 16 channels of support, users can connect multiple cameras and monitor different areas simultaneously. This is particularly useful for businesses or properties that require full coverage across large areas. The NVR ensures that all video streams are recorded smoothly and reliably, even during peak activity periods. Whether monitoring entrances, parking lots, offices, or public areas, this device delivers consistent performance.

The user interface of the Jovision JVS-ND7616-HP is designed for simplicity and ease of use. Even users without technical expertise can navigate the menus, access live feeds, playback recordings, and manage system settings easily. The intuitive interface makes setting up the NVR straightforward, allowing users to get their surveillance system up and running quickly.

Remote access is fully supported, providing users with the flexibility to monitor their property from anywhere. Using mobile applications or web platforms, administrators can view live video, check recorded footage, or adjust settings remotely. This feature is particularly valuable for business owners who travel frequently or property managers who need constant visibility over multiple sites.

The NVR is designed for 24/7 reliable operation, with stable hardware capable of handling multiple high-resolution streams simultaneously. Its robust construction ensures that it can operate continuously without performance issues, making it suitable for demanding environments where uninterrupted surveillance is critical.

Storage is highly flexible with support for multiple hard drives, allowing users to retain video for extended periods. Combined with H.265 compression, this provides an efficient storage solution that balances high-quality video with capacity optimization. Users can manage recordings, schedule backups, and review important footage with ease.

Integration with Jovision IP cameras and other ONVIF-compliant devices is seamless, offering a scalable solution that can grow with user needs. Whether adding more cameras in the future or upgrading existing surveillance infrastructure, the JVS-ND7616-HP adapts effortlessly.

Security features such as password protection, user-level management, and secure remote access ensure that surveillance data remains protected. Authorized personnel can access the system according to their permissions, while unauthorized access is prevented, safeguarding critical footage.

Overall, the Jovision JVS-ND7616-HP 16CH 4K NVR is a complete solution for those seeking high-quality, reliable, and professional surveillance. It combines advanced 4K recording, efficient H.265 compression, multi-channel support, remote monitoring, and user-friendly operation in one compact and durable device. It is perfect for businesses, educational institutions, and residential complexes that require dependable surveillance solutions.

With this NVR, users get a balance of performance, efficiency, and scalability, ensuring their surveillance system delivers continuous protection and clear, actionable footage. It is a smart choice for anyone looking to secure their property with a professional-grade, long-lasting recording solution.

General Specification
Brand Jovision
Model VS-ND7616-HP
Video & Audio
IP Camera Input 16 Channel
Audio Input / Output IPC Audio Input / Audio Output Through HDMI
Built-in Speaker Supported
Bandwidth I/O 80 Mbps / 80 Mbps
Display

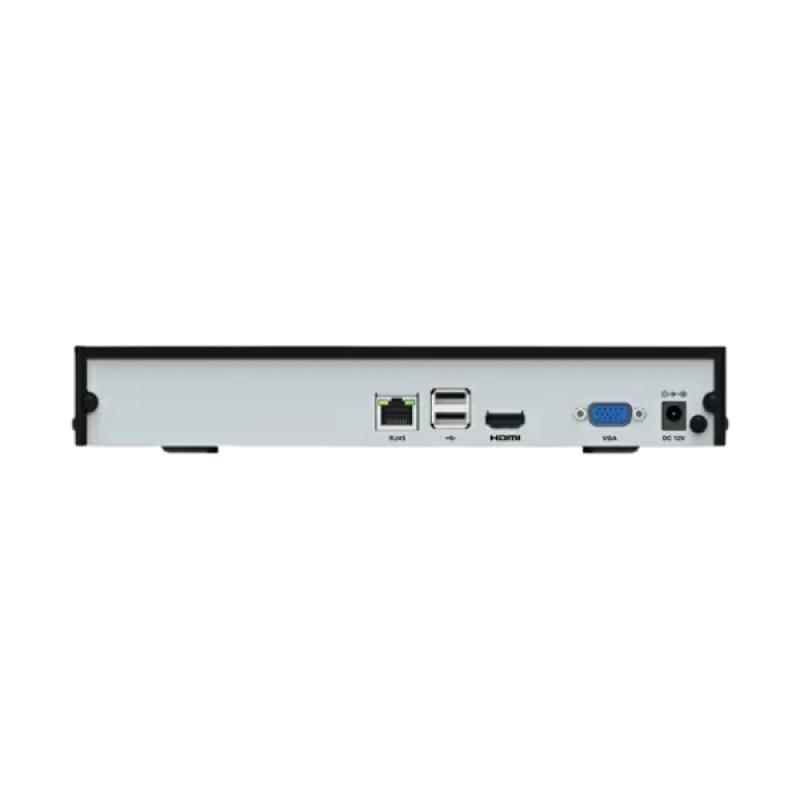

Interface 1 × HDMI, 1 × VGA
HDMI Resolution 3840 × 2160@30Hz / 2560 × 1440@30Hz / 1920 × 1080 / 1440 × 900 / 1280 × 1024 / 1280 × 720 / 1024 × 768
VGA Resolution 1920 × 1080 / 1440 × 900 / 1280 × 1024 / 1280 × 720 / 1024 × 768
Max. Decoding 1CH 4K 15fps; 8CH @ 5.0MP / 4.0MP / 1080P / 960P / 720P 25fps
Multi-Screen Display 1 / 4 / 5 / 6 / 7 / 8 / 9
OSD Camera Name & Time, Recording, Alarm Detecting, Remote Connection, Volume, Channel Number
Recording
Compression H.265 / H.264
Resolution 1CH 4K; 8CH 5.0MP / 4.0MP / 1080P / 960P / 720P
Record Mode Manual, Schedule, MD
Video Detection & Alarm
Trigger Events Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer
Video Detection Motion Detection, No Video Detection
Playback & Backup
Sync Playback 1CH 4K, 1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080P
Search Mode Channel Number / Recording Type / Date
Playback Function Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom
Backup Mode FAT32 USB Device / Network
Network
Network Interface 1 × RJ-45 Port, 10/100 Mbps
Network Function TCP/IP, DHCP, UDP, SMTP, NTP
Smart Phone iPhone, Android
Interoperability ONVIF 2.4
Storage
SATA 1 SATA Interface
Max. Storage Capacity Up to 10 TB
Power & Physical
Power Supply DC 12V
Power Consumption ≤ 10 W (Without HDD)
Working Temperature –10 °C to +55 °C
Working Humidity 10% to 90%
Dimensions 260 × 47.5 × 225 mm
Weight ≤ 1.0 kg (Without HDD)
