Dahua XVR5232AN-I3 32 Channel Penta-brid WizSense Digital Video Recorder
৳27680 ৳27900
Chat on WhatsApp
Key Features
- Model - XVR5232AN-I3
- H.265+/H.265 dual-stream video compression
- Video Recording Res. - 1920 x 1080, 1280 x 1024, 1280 x 720
- Number of Input Channel - 32 Channel
- Number HDD Interface (SATA) - 2 SATA
- Max. Storage Support - 32TB
Categories:
CCTV Camera / XVR / DahuaBrand:
Dahua SKU: VWHY9-641প্রযুক্তি পণ্যের বাজার অস্থিতিশীল হওয়ার কারণে যেকোন সময় মূল্য পরিবর্তন হতে পারে। তাই, অর্ডার করার পূর্বে পণ্যের মূল্য, স্টক ও ডেলিভারি সম্পর্কে জিজ্ঞাসা করতে যোগাযোগ করুন 01894-683430 ই নাম্বারে
XVR Specs
- Main Processor Industrial-grade processor
- Operating System Embedded Linux
- Operating Interface Web; Local GUI
- SMD Plus by Recorder 32 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
- Analog Camera Input 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Encoding Capacity Encode Enhancement disabled： Main stream: Channels 1-4 and 17-20 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps); Channels 1-4 and 17-20 4M-N/1080p@(1 fps–30 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); Encode Enhancement enabled： Main stream: Channels 1-8 and 17-24 5M-N@(1 fps–20 fps), others 5M-N@(1 fps-12 fps); (4 channels can be transformed to 5MP@6 fps) Channels 1-8 and 17-24 4M-N/1080p@(1 fps–25 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); *When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and QuickPick 2.0 cannot be used.
- Dual-stream Yes
- Video Bit Rate 32 kbps–6144 kbps
- Audio Sampling 8 kHz, 16 bit
- Audio Bit Rate 64 kbps
- Video Output 1 HDMI, 1 VGA, 1 CVBS HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
- Multi-screen Display Main Screen: 1/4/8/9/16/25/36 Sub Screen: 1/4/8/9/16 The sub screen display conflicts with IP extension function.
- Third-party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression
- Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Audio Compression G.711a; G.711u; PCM

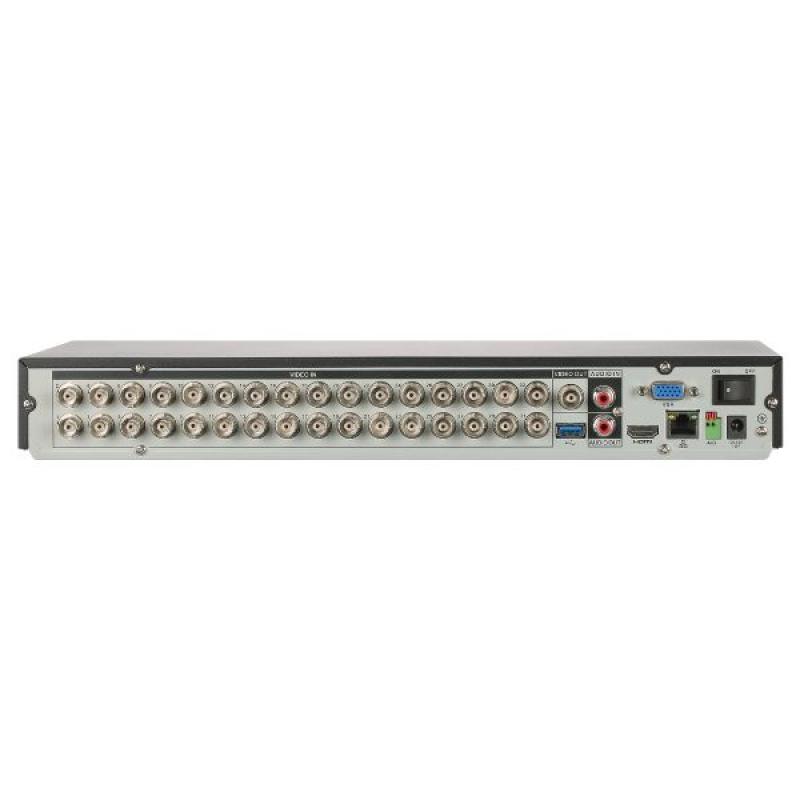

Network & Ports
- Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access iOS; Android
- Interoperability ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser Chrome; IE; Safari; Edge; Firefox
- Audio Input 1-channel RCA 32-channel BNC (Coaxial Audio)
- Audio Output 1-channel RCA
- Two-way Talk Yes (share the same audio input with the first channel)
- USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
- HDMI 1
- VGA 1
- Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
Alarm & Recording Playback
- General Alarm Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
- Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
- Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus
- Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
- Record Mode General; alarm; motion detection; intelligent; POS
- Recording Playback 1/4/9/16
- Backup Method USB device and network
General
- Power Supply 12 VDC, 5 A
- Power Consumption <16 W (without HDD)
- Product Dimensions 375.0 mm × 289.6 mm × 53.0 mm (14.76" × 11.40" × 2.09") (W × D × H)
- Packaging Dimensions 427.0 mm × 137.0 mm × 356.0 mm (16.81" × 5.39" × 14.02") (W × D × H)
- Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity 10%–90% (RH), non-condensing
- Net Weight 1.90 kg (4.20 lb)
- Gross Weight 3.20 kg (7.00 lb)
Warranty
- Warranty 1-year

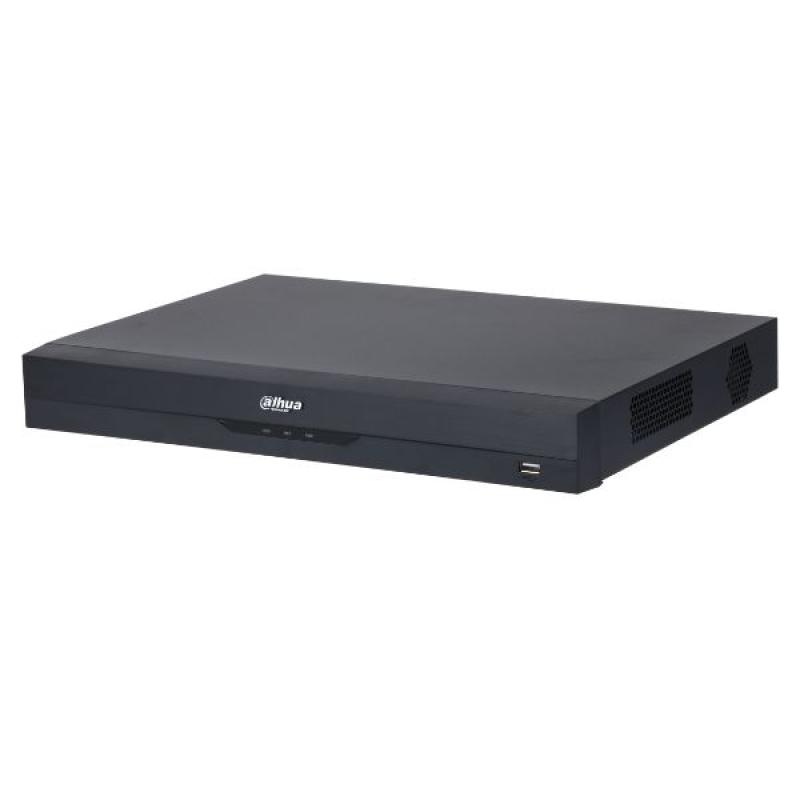

Dahua XVR5232AN-I3 32 Channel Penta-brid WizSense Digital Video Recorder
The Dahua XVR5232AN-I3 32 Channel Penta-brid WizSense Digital Video Recorder is a high-performance penta-brid digital video recorder with 32 channels that is intended to provide scalable, dependable, and intelligent surveillance systems. This DVR gives the most flexibility by supporting a variety of video formats, such as HDCVI, AHD, TVI, CVBS, and IP. This allows for interaction with both new and old camera systems. Intelligent detection features like vehicle and human classification, perimeter security, and intelligent motion detection are all made possible by its WizSense technology, which integrates AI-powered analytics.
The XVR5232AN-I3's high-definition recording and playback capabilities guarantee that every detail is precisely recorded, producing crisp, colorful video for efficient monitoring. The cutting-edge H.265+ compression technique makes long-term recording practical and economical by optimizing bandwidth utilization and lowering storage space needs without sacrificing video quality.
Users may see live feeds, play back recordings, and adjust system settings remotely from any location using Dahua's client software and mobile app, providing convenience and peace of mind. The DVR is appropriate for both novice and expert users because of its user-friendly interface, which makes setup, configuration, and operation simple.
Overall, the Dahua XVR5232AN-I3 32 Channel Penta-brid WizSense Digital Video Recorder is a small but mighty device that is perfect for large residential projects, commercial establishments, and enterprises that need dependable, scalable, and intelligent video surveillance. Its high-definition performance, multi-format compatibility, and AI capabilities guarantee thorough security coverage and effective management for contemporary surveillance requirements.
What is the price of Dahua XVR5232AN-I3 32 Channel XVR?
The latest price of Dahua XVR5232AN-I3 32 Channel XVR in Bangladesh is 27,680৳. You can buy the Dahua XVR5232AN-I3 32 Channel XVR at the best price from our website or visit our office.
