DAHUA XVR1B16H 16 Channel Penta-brid 4M-N/1080P Cooper 1U Digital Video Recorder
৳10900 ৳11250
Chat on WhatsApp
Key Features
- Model - XVR1B16H
- Video Recording Res. - 1080P
- H.265+/H.265 dual-stream video compression
- Number of Input Channel - 16 Channel
- Number HDD Interface (SATA) - 1 SATA
- Max. Storage Support - 16TB
Categories:
CCTV Camera / XVR / DahuaBrand:
Dahua SKU: GK2RA-984প্রযুক্তি পণ্যের বাজার অস্থিতিশীল হওয়ার কারণে যেকোন সময় মূল্য পরিবর্তন হতে পারে। তাই, অর্ডার করার পূর্বে পণ্যের মূল্য, স্টক ও ডেলিভারি সম্পর্কে জিজ্ঞাসা করতে যোগাযোগ করুন 01894-683430 ই নাম্বারে
XVR Specs
- Main Processor Industrial-grade processor
- Operating System Embedded Linux
- Operating Interface Web; Local GUI
- SMD Plus by Recorder 16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
- Analog Camera Input 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Encoding Capacity Main stream: 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps) 5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: D1/CIF@(1 fps–15 fps)
- Dual-stream Yes
- Video Bit Rate 32 kbps–6144 kbps
- Audio Sampling 8 kHz, 16 bit
- Audio Bit Rate 64 kbps
- Video Output 1 HDMI, 1 VGA VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
- Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25
- Third-party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression
- Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Audio Compression G.711a; G.711u; PCM
Network & Ports
- Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access iOS; Android
- Interoperability ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser Chrome; IE; Safari; Edge; Firefox
- Audio Input 1-channel RCA 16-channel BNC (Coaxial Audio)
- Audio Output 1-channel RCA
- Two-way Talk Yes (share the same audio input with the first channel)
- USB 2 (2 rear USB 2.0 ports)
- HDMI 1
- VGA 1
- Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
Alarm & Recording Playback
- General Alarm Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
- Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
- Intelligent Alarm SMD Plus
- Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
- Record Mode General; alarm; motion detection
- Recording Playback 1/4/9/16
- Backup Method USB device and network
General
- Power Supply 12 VDC, 2 A
- Power Consumption <12 W(without HDD)
- Product Dimensions 260.0 mm × 231.4 mm × 47.6 mm (10.24" × 9.11" × 1.87") (W × D × H)
- Packaging Dimensions 333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × 12.40") (W × D × H)
- Operating Temperature –10 °C to +45 °C (+14 °F to +113 °F)
- Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity 10%–90% (RH), non-condensing
- Net Weight 0.93 kg (2.05 lb)
- Gross Weight 1.43 kg (3.16 lb)
Warranty
- Warranty 1-year

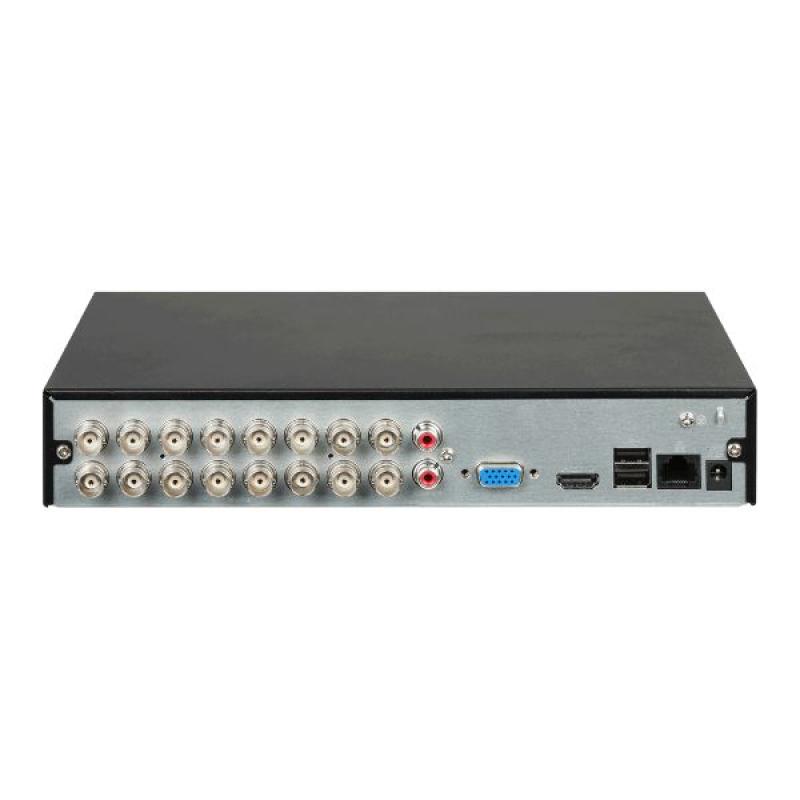

DAHUA XVR1B16H 16 Channel Penta-brid 4M-N/1080P Cooper 1U Digital Video Recorder
The DAHUA XVR1B16H 16 Channel Penta-brid 4M-N/1080P Cooper 1U Digital Video Recorder is a penta-brid digital video recorder with a high capacity of 16 channels that is intended for medium- to large-scale surveillance systems. With support for a number of camera types, including as HDCVI, AHD, TVI, CVBS, and IP, this DVR offers the most versatility possible, enabling integration with a large range of cameras and guaranteeing simple system upgrades.
The XVR1B16H provides crisp and detailed video recording and playback with support for 4M-N and 1080P resolution, allowing users to clearly monitor every area of their property. It makes long-term recording economical and efficient by optimizing storage usage while preserving high-quality video through the use of H.265+ compression technology.
The DVR improves security monitoring and guarantees prompt alerts for any odd activity thanks to its intelligent video system features, which include motion detection, video tampering alarms, and smart playback. Without sacrificing performance, its 1U small size makes installation in server racks or other tight spaces simple.
Additionally, the XVR1B16H may be accessed remotely through the Dahua mobile app, which lets users control system settings, watch live feeds, and play back recordings from PCs, tablets, or smartphones at any time or place. It is appropriate for both novice and expert users due to its user-friendly interface, which guarantees seamless operation.
Overall, the DAHUA XVR1B16H 16 Channel Penta-brid 4M-N/1080P Cooper 1U Digital Video Recorder is a dependable, adaptable, and effective option for companies, offices, retail establishments, and residential properties looking for a high-end video surveillance system that combines intelligent monitoring features, high resolution, and multi-format compatibility.
What is the price of Dahua XVR1B16H-I 16 Channel 1080P XVR?
The latest price of Dahua XVR1B16H-I 16 Channel 1080P XVR in Bangladesh is 10,900৳. You can buy the Dahua XVR1B16H-I 16 Channel 1080P XVR at the best price from our website or visit our office.
