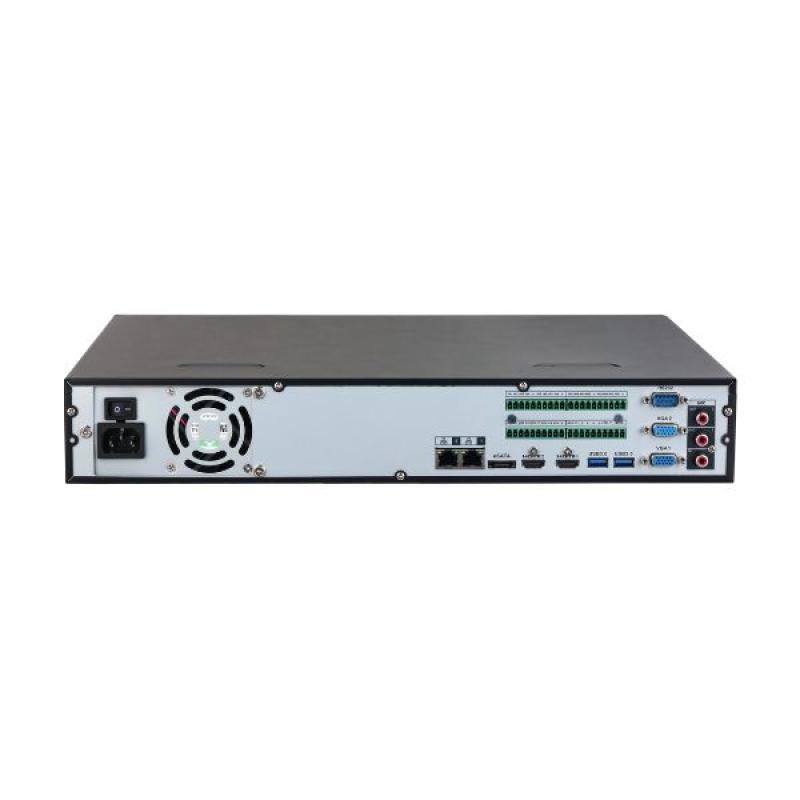

Dahua NVR5464-EI 64 Channel 4HDD 1.5U WizSense NVR
Key FeaturesModel - NVR5464-EIDecoding Capability - 32x 1080p@30 fps, 32x 2MP@30 fpsNumber of Input Channel - 64 ChannelInterface - 3x USB, 2x HDMI, 2x VGA, 2x RJ45Storage Capacity...
Dahua NVR5464-EI 64 Channel 4HDD 1.5U WizSense NVR
Quick Overview
- Model - NVR5464-EI
- Decoding Capability - 32x 1080p@30 fps, 32x 2MP@30 fps
- Number of Input Channel - 64 Channel
- Interface - 3x USB, 2x HDMI, 2x VGA, 2x RJ45
- Storage Capacity - 4 SATA Ports
The Dahua NVR5464-EI 64 Channel 4HDD 1.5U WizSense NVR is a professional 64-channel WizSense network video recorder with strong storage capacities and cutting-edge AI-driven video analytics made to oversee expansive surveillance systems. This NVR is a great option for businesses, government buildings, industrial complexes, and commercial facilities since it offers the optimal blend of performance, storage capacity, and intelligent security management with its 1.5U rack-mountable chassis and support for up to 4 HDDs.
The NVR5464-EI ensures that every detail is captured with clarity by providing smooth, high-resolution recording and playback for up to 64 IP camera inputs. Security teams can precisely monitor footage thanks to its capabilities for 4K ultra-high resolution video output. The system's cutting-edge H.265 and H.264 compression technologies provide long-term efficiency by lowering storage and bandwidth needs without sacrificing video quality.
The NVR5464-EI, which is a member of Dahua's WizSense series, has AI-powered capabilities including smart motion detection, human and vehicle recognition, and perimeter security. By reducing false alerts and improving monitoring precision, these clever features increase the effectiveness and dependability of security operations. Intelligent search capabilities and real-time alerts expedite reaction times and streamline event inquiry.
The NVR's straightforward, user-friendly interface makes it easy to set up, configure, and operate on a regular basis. Using a smartphone, tablet, or PC, customers may monitor live broadcasts, review replays, and adjust system settings remotely thanks to Dahua's dedicated mobile application. Flexible video display and backup options are also offered by several HDMI, VGA, and USB connectors.
Overall, the Dahua NVR5464-EI 64 Channel 4HDD 1.5U WizSense NVR provides robust and future-ready performance with scalable storage, robust AI capabilities, and support for large-scale deployments. It is a great option for businesses that need continuous, dependable, and intelligent surveillance for intricate security settings.
| General Specification | |
|---|---|
| Brand | Dahua |
| Model | NVR5464-EI |
| Type | 64 Channel NVR |
| Video Specification | |
| Number of Input Channel | 64 Channel |
| Video Compression / Format | Video Compression / Format |
| Video Output (VGA) | 2 |
| Video Output (DVI) | No |
| Video Output (HDMI) | 2 |
| Video Recording Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
| Max. Video Recording Resolution | 1920 × 1080 |
| Audio Specification | |
| Audio Input Channel (RCA) | 1-Channel RCA |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Audio Output Channel | Audio Output Channel |
| Recording & Decoding | |
| Frame Rate | 32 × 1080p@30 fps or 32 × 2 MP@30 fps |
| Live View / Playback Resolution | 1080p; 720p; D1; CIF; QCIF |
| Decoding Capability | AI Disabled: 2-Channel 32 MP@20 fps; 2-Channel 24 MP@20 fps; 4-Channel 16 MP@30 fps; 5-Channel 12 MP@30 fps; 8-Channel 8 MP@30 fps; 12-Channel 5 MP@30 fps; 16-Channel 4 MP@30 fps; 32-Channel 1080p@30 fps. AI Enabled: 1-Channel 32 MP@20 fps; 1-Channel 24 MP@20 fps; 2-Channel 16 MP@30 fps; 4-Channel 12 MP@30 fps; 4-Channel 8 MP@30 fps; 8-Channel 5 MP@30 fps; 12-Channel 4 MP@30 fps; 24-Channel 1080p@30 fps |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search; Multicast; P2P; Auto Registration; iSCSI |
| Wi-Fi | No |
| Network Interface (RJ45) | 2 × RJ45 10M/100M/1000M Self-Adaptive Ethernet Interface |
| PoE Interface | No |
| Storage & Interface | |
| Number of HDD Interface (SATA) | 4 SATA |
| Max. HDD Support (GB, TB) | Up to 16 TB Capacity for Each Disk |
| Max. Storage Support | 64 TB |
| eSATA | 1 |
| Serial Interface | RS-232; RS-485 |
| USB Port | 1 × USB 2.0; 2 × USB 3.0 |
| Technical Specification | |
| Main Processor | Industrial-Grade Processor |
| Display Split | 1st Screen: 1/4/8/9/16/25/36/64; 2nd Screen: 1/4/8/9/16 |
| Incoming Bandwidth | 384 Mbps |
| Outgoing Bandwidth | 384 Mbps |
| Interoperability | ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Privacy Masking | Yes |
| Video Detection | Motion Detection |
| Backup Storage | Network; USB |
| Compatibility | |
| Operating System | Embedded Linux |
| Smart Phone Supported | Android; iOS |
| Power | |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Approx. Power Consumption | 13 W (Without HDD) |
| Physical Specification | |
| Color | Black |
| Dimensions | 440.0 × 415.1 × 70.0 mm |
| Weight | 4.74 kg |
| AI Features | |
| AcuPick | Up to 16 Channels |
| N+M Cluster | Supported |
| AI by Recorder | Face Detection; Face Recognition; Perimeter Protection; SMD Plus |
| AI by Camera | Face Detection; Face Recognition; Video Metadata; Perimeter Protection; SMD Plus; Stereo Analysis; Crowd Distribution; People Counting; ANPR; Vehicle Density; Heat Map |
| Security Baseline | 2.3 |
| Perimeter Protection | Supported |
| Face Detection | Supported |
| Face Recognition | Supported |
| SMD Plus | Supported |
| Video Metadata | Supported |
| Vehicle License Plate Comparison | Supported |
| Audio and Video | Supported |
| Perimeter Protection | |
| Perimeter Performance by AI Recorder | 4 Channels; 10 IVS Rules for Each Channel |
| Perimeter Performance by AI Camera | 16 Channels |
| Face Recognition | |
| Face Attributes | Gender; Age Group; Glasses; Expressions; Face Mask; Beard |
| Face Detection Performance by AI Recorder | 2 Channels; Up to 12 Face Images/s per Channel |
| Face Detection Performance by AI Camera | 16 Channels |
| Face Database Capacity | Up to 20 Face Databases with 20,000 Images |
| Recording & Playback | |
| Multi-Channel Playback | Up to 16 Channels |
| Record Mode | General; Motion Detection; Intelligent; Alarm; POS |
| System & Interface | |
| Operating Interface | Web; Local GUI |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Network Mode | Multi-Address Mode; Load Balance; Fault Tolerance; Other Network Port Binding Modes |
| Warranty | |
| Warranty | 2 Year (Without Adapter) |
