Uniview XVR301-04F 4 Chanel 1 SATA XVR
৳2800 ৳4000
Chat on WhatsApp
Key Features
- Model: XVR301-04F
- Channels: 4 Channel
- Type: 1 SATA XVR
- Compression: H.265/H.264
- Output: 4K HDMI
Categories:
XVR / UniviewBrand:
Uniview SKU: 2MRP8-783প্রযুক্তি পণ্যের বাজার অস্থিতিশীল হওয়ার কারণে যেকোন সময় মূল্য পরিবর্তন হতে পারে। তাই, অর্ডার করার পূর্বে পণ্যের মূল্য, স্টক ও ডেলিভারি সম্পর্কে জিজ্ঞাসা করতে যোগাযোগ করুন 01894-683430 ই নাম্বারে
Video/Audio Input & Output
- IP Video Input 2-ch
- Analog Video Input 4-ch, BNC
- Max IP Video Input 6-ch
- HDMI Output HDMI: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- Live View Display HDMI/VGA: 1/4/6/8/9
Encoding/Decoding
- Recording Resolution 1080P Lite/720P/D1
- Recording Frame Rate Main stream: 1080P Lite@25fps Sub stream: D1@25fps Main stream: 720P@30fps Sub stream: D1@30fps
- Audio Sample Rate 8 kHz, 16 bit per channel
- Audio Bit Rate 64 Kbps per channel
- Decoding Capability Analog:4 x 1080P Lite@25, 4 x 720P@30 IP: 1 x 6MP@20, 2 x 1080P@30
Network
- Incoming Bandwidth 24Mbps (Up to 32Mbps after all analog channel conversion)
- Outgoing Bandwidth 48Mbps
- Network Interface 1 RJ45 10 M/100 M self-adaptive Ethernet Interface
- Protocols TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
- Browser IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Hard Disk & USB
- SATA 1 SATA interface
- Capacity Up to 6 TB for each HDD
- USB Rear panel: 2 × USB2.0
General
- Power Supply DC 12 V/1.5 A
- Power Consumption ≤ 10W
- Analog Smart by XVR Ultra Motion Detection (UMD)
- Smart Functions by XVR 4-ch (UMD)
- Working Temperature -10 ℃ to 55 ℃ (14 ℉ to 131 ℉ )
- Working Humidity ≤ 90% RH (non-condensing)
- Dimensions 190mm × 202mm × 42mm (7.5
- Weight (without HDD) ≤0.6 Kg ( 1.32lb )
Warranty
- Warranty 1-year
Uniview XVR301-04F 4 Channel 1 SATA XVR

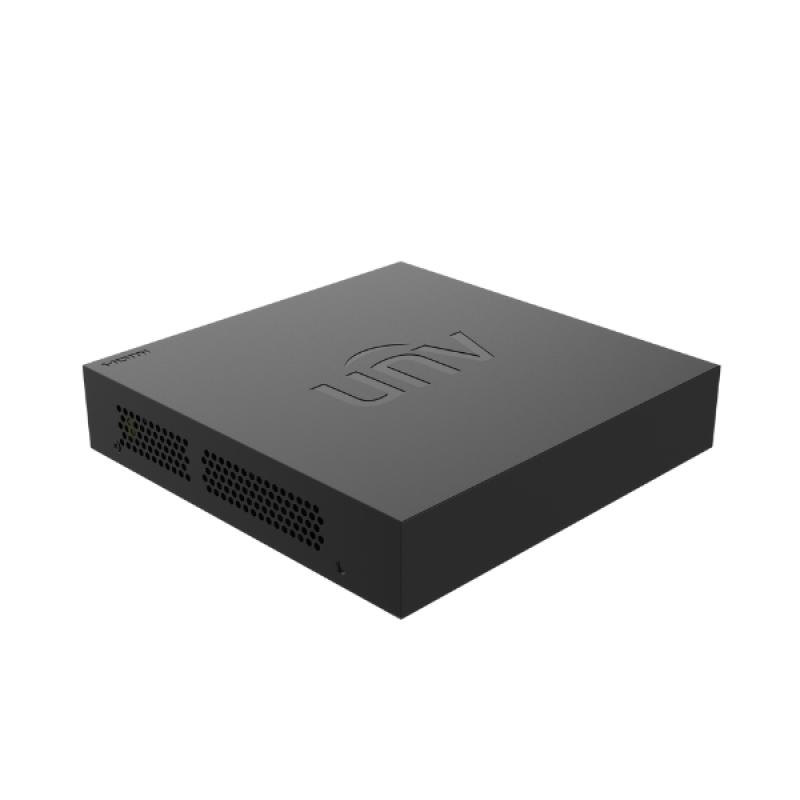

The Uniview XVR301-04F 4 Channel 1 SATA XVR is a compact yet powerful video recorder designed to provide efficient and reliable surveillance for small-scale security systems. It is an ideal choice for homes, small offices, retail shops, and other environments that require dependable monitoring with high-quality video recording. This XVR is designed to combine advanced recording technology, easy operation, and robust performance in a user-friendly package, making it suitable for both residential and commercial use.
One of the key advantages of the XVR301-04F is its support for 4 channels, allowing up to four cameras to be connected and recorded simultaneously. This capability provides comprehensive coverage for small properties, ensuring that every important area is monitored and recorded. The device is compatible with a variety of camera types, including analog, AHD, TVI, CVI, and IP cameras, giving users flexibility to choose the best camera technology for their needs. With this versatility, the XVR can serve as a central hub for mixed surveillance setups without the need for multiple recording devices.
The Uniview XVR301-04F supports high-definition video recording, delivering clear and detailed images that are essential for accurate monitoring and investigation. Whether it is identifying faces, vehicles, or objects in a scene, the high-resolution recording ensures that nothing is missed. This level of detail is especially important for small businesses or homeowners who rely on surveillance footage for security, insurance claims, or monitoring employee activity.
Storage is another area where the XVR excels. It comes with support for 1 SATA hard drive, allowing users to store several days or weeks of recorded footage depending on the storage capacity. The system’s video compression technology optimizes the storage space without compromising video quality, making it possible to retain high-quality recordings for extended periods. This ensures that important events can be reviewed even after days have passed, providing peace of mind for users who need reliable long-term storage.
Setting up the XVR301-04F is straightforward, even for users with limited technical experience. The system is designed with plug-and-play functionality, which allows cameras to be connected and configured quickly. Users can begin recording almost immediately after installation. The intuitive interface further simplifies operation, making it easy to navigate through live views, playback recordings, and manage system settings.
Remote access is an important feature of the Uniview XVR301-04F. Through Uniview’s mobile app or web client, users can view live video streams, playback recordings, and manage system settings from anywhere. This remote access capability allows homeowners and business owners to monitor their property in real-time, even when they are away. Whether checking on employees, tracking deliveries, or ensuring that the premises are secure, remote access makes surveillance more convenient and effective.
The XVR301-04F also offers intelligent video management functions such as motion detection, event-triggered recording, and scheduled recording. These features allow users to focus on important events, reduce unnecessary storage usage, and quickly locate significant footage when needed. Multi-user access is also supported, enabling several authorized individuals to monitor and manage the system simultaneously without compromising security.
From a design perspective, the XVR301-04F is compact, durable, and built for continuous 24/7 operation. Its reliable performance ensures that the system can handle round-the-clock surveillance without downtime, making it suitable even for critical security environments. Additionally, the device supports HDMI and VGA output, allowing high-quality video display on connected monitors for smooth live viewing and playback.
In conclusion, the Uniview XVR301-04F 4 Channel 1 SATA XVR is a reliable, flexible, and efficient solution for small-scale video surveillance. It provides clear high-definition recording, versatile camera compatibility, optimized storage, intelligent monitoring features, and remote access—all in a compact and easy-to-use package. This XVR is ideal for homeowners, small business owners, and institutions that need dependable video surveillance with professional-grade quality and simple operation.
What is the price of Uniview XVR301-04F 4 Chanel 1 SATA XVR?
The latest price of Uniview XVR301-04F 4 Chanel 1 SATA XVR in Bangladesh is 2,800৳. You can buy the Camera at the best price from our website or visit our office.
Reviews
Write ReviewRelated Product

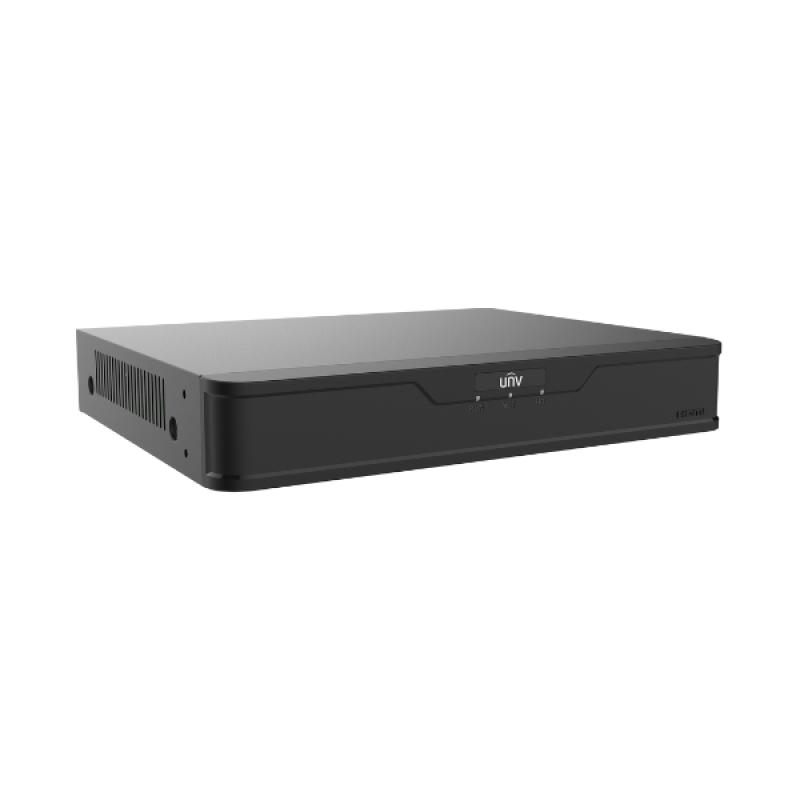

Uniview XVR301-08F 8 Channel 1 SATA XVR
৳4900 ৳5500
Uniview XVR301-08G3 8 Channel 1 SATA XVR
৳5450 ৳6000
Uniview XVR301-16G3 16 Channel 1 SATA XVR
৳8899 ৳10000
Latest Products

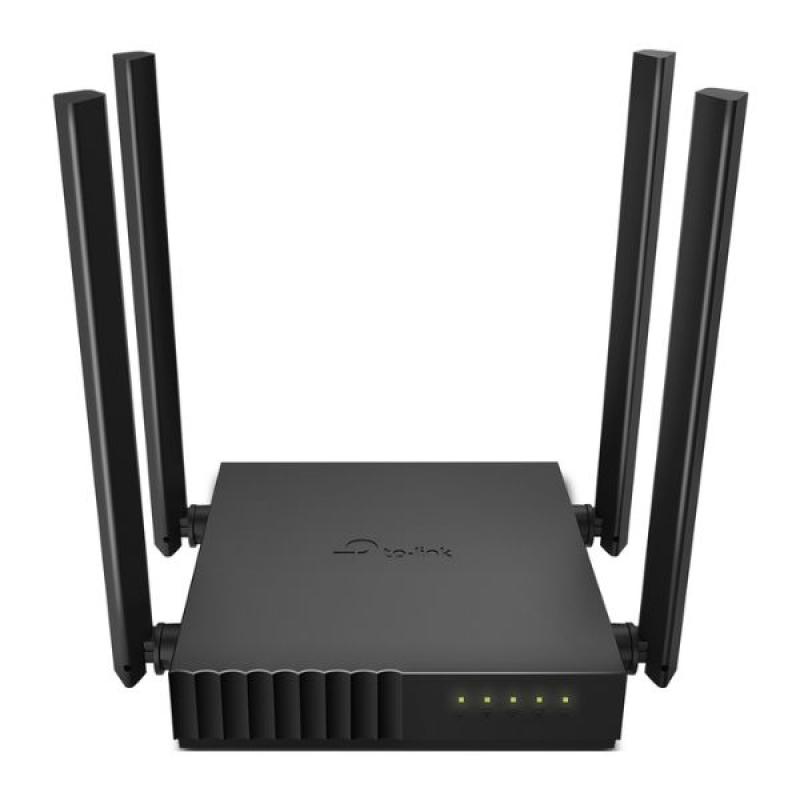

TP-Link Archer C54 AC1200 Dual Band Wi-Fi Router
৳2140 ৳2310

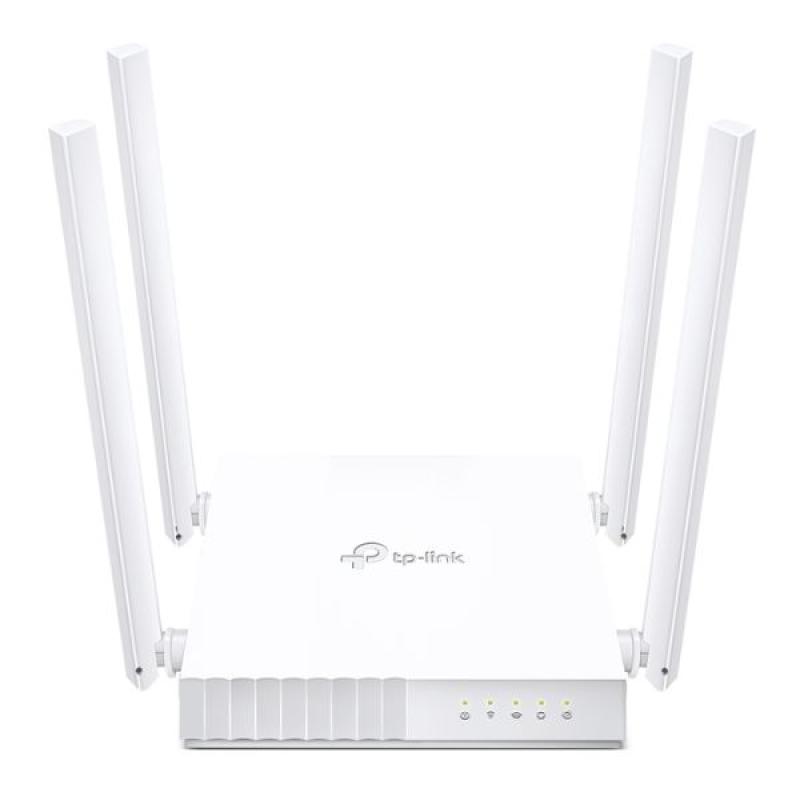

TP-Link Archer C24 AC750 Dual-Band WiFi Router
৳1820 ৳1980

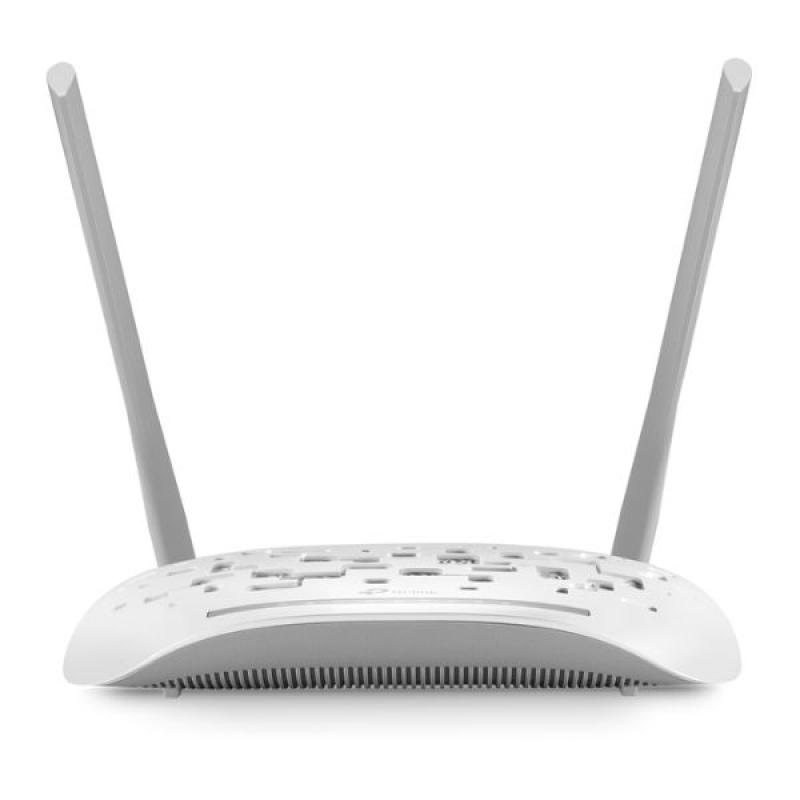

TP-Link TD-W8961N 300Mbps ADSL2+ Modem Router
