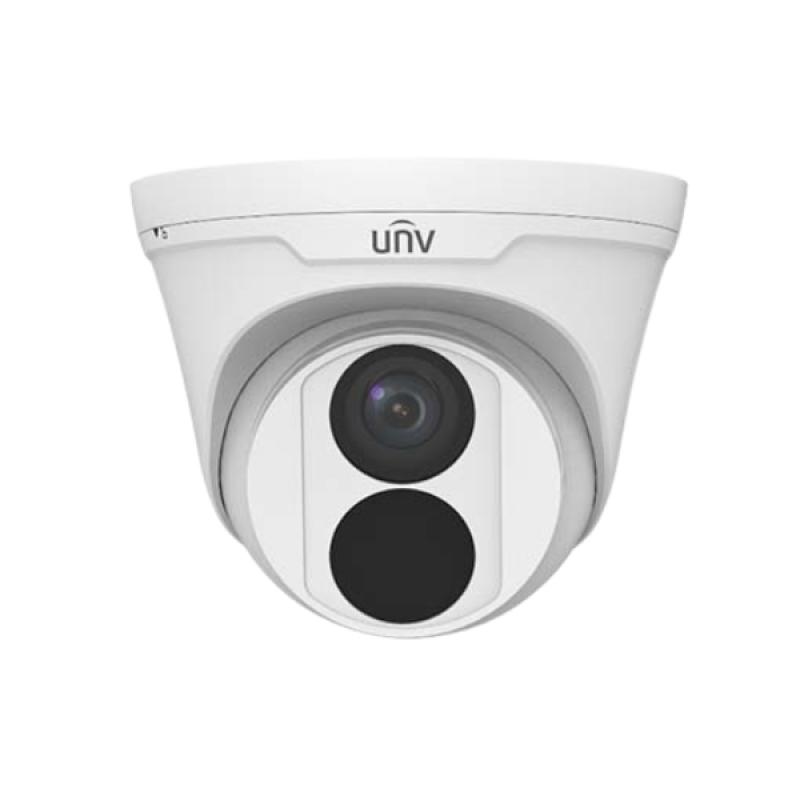

Uniview IPC3614LB-SF28K-G 4MP Fixed Dome Network Camera
Key FeaturesModel: IPC3614LB‑SF28K‑GResolution: 4 MPLens: 2.8 mm F2.0IR Range: 30 mProtection: IP67Compression: Ultra 265
Uniview IPC3614LB-SF28K-G 4MP Fixed Dome Network Camera
Quick Overview
- Model: IPC3614LB‑SF28K‑G
- Resolution: 4 MP
- Lens: 2.8 mm F2.0
- IR Range: 30 m
- Protection: IP67
- Compression: Ultra 265
The Uniview IPC3614LB-SF28K-G 4MP Dome IP Camera is a reliable and efficient security solution designed to deliver clear and detailed video for homes, offices, and public spaces. It offers 4-megapixel resolution, ensuring that faces, vehicles, and objects are captured clearly. This camera is suitable for indoor and outdoor use, providing consistent performance in all conditions. Its dome design allows it to blend easily into ceilings or walls, making it a discreet choice for modern surveillance systems.
This camera works well in both bright and low-light environments. During the day, it captures clear and sharp images. At night, it uses infrared technology to maintain visibility even in complete darkness. The camera automatically adjusts to lighting changes, so the video remains consistent. This makes it ideal for areas with mixed lighting, such as entrances, hallways, parking lots, and outdoor walkways. Users can rely on it for 24-hour monitoring, ensuring their property is always protected.
Durability is a strong point of the IPC3614LB-SF28K-G. The camera is built with weatherproof housing that protects it from rain, dust, and extreme temperatures. This makes it perfect for outdoor placement, including gardens, driveways, or building entrances. The strong construction ensures long-term use and reduces maintenance needs. It is designed to provide consistent surveillance in homes, offices, shops, or industrial areas.
Installation is simple and user-friendly. The camera supports Power over Ethernet (PoE), which allows power and data to travel through a single cable. This makes the setup cleaner, faster, and easier without extra wiring. It connects easily to network video recorders and other devices, offering flexibility for small or large security systems. Its compatibility with standard network protocols ensures smooth integration with other equipment when expanding a security network.
The camera supports smart monitoring functions that make security management easier. Motion detection allows it to recognize movement and notify users when activity occurs. This reduces the need for constant manual monitoring. It helps users focus on real events and ensures a timely response to potential security issues. The camera captures clear and useful footage that can be relied upon when reviewing incidents.
Audio communication adds extra convenience. The camera supports two-way audio, which allows users to speak and listen through the device. This is useful for home monitoring, offices, shops, or other locations where interaction is needed without being physically present. Users can communicate with visitors, staff, or delivery personnel through the camera, adding another layer of safety and control.
Video storage is flexible and efficient. The camera uses advanced compression technology to reduce storage space while keeping video quality high. Users can store footage on microSD cards or connect to network video recorders. Remote access is available via mobile apps or web browsers, allowing users to view live or recorded video from anywhere. This is especially helpful for people who travel or manage multiple sites.
The 4MP resolution allows zooming into video without losing clarity. This is important for identifying small details like faces, license plates, or objects. The camera also features wide dynamic range technology, which balances light and shadows to produce clear images in areas with bright sunlight and dark corners. Users will not lose important details due to challenging lighting conditions.
Energy efficiency and long-term durability make this camera a strong choice for modern security needs. It is built to operate continuously without losing performance. The dome design allows it to blend into surroundings while providing effective coverage of key areas. The Uniview IPC3614LB-SF28K-G 4MP Dome IP Camera is suitable for homes, offices, shops, schools, and other areas that need reliable and high-quality monitoring.
Overall, the Uniview IPC3614LB-SF28K-G 4MP Dome IP Camera provides sharp video, consistent performance, easy installation, and dependable monitoring. Its durable design, night vision, remote access, and smart monitoring support make it a complete security solution. Users can feel confident that their property, staff, and family are protected with this reliable and long-lasting camera.
| Camera Specification | |
|---|---|
| Brand | Uniview |
| Model | IPC3614LB-SF28K-G |
| Camera Type | 4MP Dome Network Camera |
| Image Sensor | 1/3", 4.0 Megapixel, Progressive Scan CMOS |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut Filter with Auto Switch (ICR) |
| Shutter | Auto/Manual, 1–1/100000s |
| Adjustment Angle | Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° |
| S/N | >56dB |
| WDR | DWDR |
| Lens | |
| Lens Type | 2.8mm @ F2.0 |
| Iris | Fixed |
| Horizontal FOV | 97.0° |
| Vertical FOV | 52.2° |
| Diagonal FOV | 107.5° |
| DORI | |
| Detect | 63.0m |
| Observe | 25.2m |
| Recognize | 12.6m |
| Identify | 6.3m |
| Illuminator | |
| IR Range | Up to 30m (98ft) |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline Profile, Main Profile, High Profile |
| Main Stream | 4MP (2560×1440), Max 25fps; 3MP (2304×1296), Max 30fps; 1080P, Max 30fps; 720P, Max 30fps |
| Sub Stream | D1, 640×360, 2CIF, CIF; Max 30fps |
| Video Bit Rate | 128 Kbps–6144 Kbps |
| U-code | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual Streams |
| Image | |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal / Vertical / Horizontal / 180° |
| Dewarping | N/A |
| HLC | Supported |
| Events | |
| Behavior Detection | Cross Line, Intrusion (Based on Human Body Detection) |
| Basic Detection | Motion Detection, Tampering Alarm |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Storage | |
| Edge Storage | Micro SD, Up to 128GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users |
| User Levels | Administrator, Common User |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, RTSP Basic/Digest Authentication, HTTP Digest Authentication, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Web Browser | Plug-in required: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Free Live View | Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WiFi | N/A |
| Network | 1 × RJ45 10/100M Base-TX Ethernet |
| Video Output | N/A |
| Power | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 4.0W |
| General | |
| Power Interface | Ø5.5mm Coaxial Power Plug |
| Dimensions | Φ118 × 97mm (Φ4.6" × 3.8") |
| Weight | 0.30kg (0.66lb) |
| Material | Metal + Plastic |
| Working Environment | -30°C to 60°C (-22°F to 140°F), Humidity: ≤95% RH |
| Storage Environment | -30°C to 60°C (-22°F to 140°F), Humidity: ≤95% RH |
| Surge Protection | N/A |
