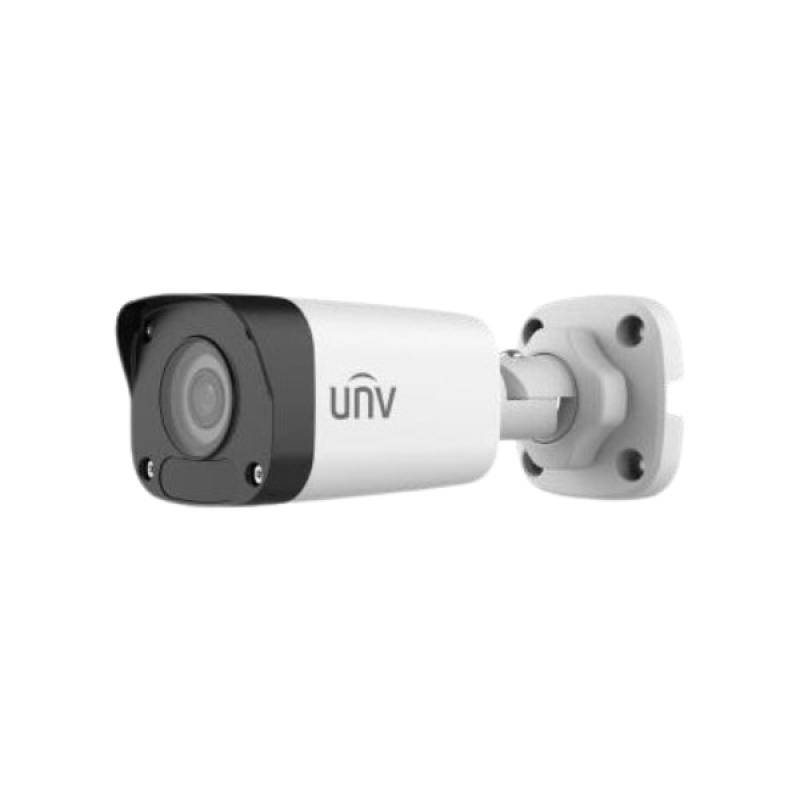

Uniview IPC2124LB-SF40-A 4MP Fixed IR Mini Bullet IP Camera
Key FeaturesModel: IPC2124LB-SF40-AResolution: 4MPCompression: Ultra 265Night-Vision: Smart IRPower: PoEProtection: IP67
Uniview IPC2124LB-SF40-A 4MP Fixed IR Mini Bullet IP Camera
Quick Overview
- Model: IPC2124LB-SF40-A
- Resolution: 4MP
- Compression: Ultra 265
- Night-Vision: Smart IR
- Power: PoE
- Protection: IP67
The Uniview IPC2124LB-SF40-A 4MP Mini IP Camera is a compact yet powerful security solution designed for people who need clear video, durable performance, and easy installation in a small form. Even though it is called a mini camera, the performance it delivers is strong enough to compete with larger models. Uniview has built its reputation around reliable and advanced video surveillance products, and this model continues that tradition by combining high-resolution video quality with practical features for everyday use.
The first thing that stands out with this mini IP camera is its 4-megapixel resolution. This level of clarity makes every recorded detail stand out. Small objects, faces, or movements can be seen with more accuracy compared to older low-resolution models. For security, the ability to identify important details can make a huge difference. Businesses can use it to monitor entrances, hallways, or shop floors, while homeowners can rely on it for protecting doors, driveways, or indoor spaces. Wherever it is installed, the video remains sharp and easy to understand.
Although the camera is small in size, it does not compromise on coverage. The IPC2124LB-SF40-A comes with a fixed 4.0 mm lens that balances detail with a wide viewing angle. This allows one camera to cover a large portion of an area, reducing the need for multiple units. The wide-angle coverage makes it ideal for offices, retail shops, small warehouses, and even outdoor spaces where complete visibility is important. It saves both installation cost and time by offering more monitoring with fewer devices.
The camera is also built to perform well in different lighting conditions. Security is not just needed during the day; night monitoring is equally important. The Uniview IPC2124LB-SF40-A comes with advanced infrared technology that allows it to capture video even in complete darkness. This ensures that the property remains protected twenty-four hours a day. Night vision range is strong enough to monitor open areas and still provide a clear picture of what is happening. For anyone worried about security during late hours, this feature adds extra peace of mind.
Durability is another key point of this Uniview mini IP camera. Despite being compact, it is built with materials that protect it against harsh weather conditions. Rain, dust, or strong sunlight do not affect its performance. This means it can be used both indoors and outdoors without any worry. Many cameras face problems when exposed to different climates, but Uniview has designed this model to be long-lasting. For users who want a product that can be installed once and relied upon for years, this camera is a safe choice.
The camera also comes with IP technology that allows remote access. Once connected to the network, the live feed can be viewed from smartphones, tablets, or computers. This is very helpful for business owners or homeowners who want to check their property while away. For example, shop owners can monitor their store after closing hours, or parents can keep an eye on their children while traveling. This modern flexibility makes the camera more than just a recording device; it becomes a complete monitoring system.
Another major benefit of the Uniview IPC2124LB-SF40-A is the use of PoE (Power over Ethernet). With this technology, one cable is enough to provide both power and data. This makes installation simple, clean, and cost-effective. For people setting up multiple cameras, it reduces the need for extra wiring and keeps the system more organized. Even for single installations, it makes the process faster and easier.
Storage and data management are also optimized with this camera. Thanks to smart video compression, the camera saves a lot of storage space without losing important details in the video. This helps reduce the cost of additional storage devices and keeps the system efficient. Businesses with many cameras often face storage issues, but a compression system like this makes sure recordings are well managed while maintaining clear video quality.
Security systems today need more than just recording—they need intelligence. The Uniview IPC2124LB-SF40-A offers smart detection features that make surveillance more effective. It can detect motion and alert users about unusual activity. This saves time, as users do not need to sit and watch recordings for hours. Instead, they can focus only on important events when an alert is triggered.
Finally, Uniview has designed the software and mobile app in a user-friendly way. Adjusting settings, playing back video, or managing multiple cameras can be done without difficulty. Even people who are not very technical can use it comfortably. For businesses and homes, this ease of use is an added advantage because it makes daily monitoring much simpler.
In conclusion, the Uniview IPC2124LB-SF40-A 4MP Mini IP Camera is a complete and practical choice for modern surveillance. It combines compact design with strong performance, giving users high-definition video, wide coverage, night vision, weather resistance, smart alerts, and remote access all in one small package. It is ideal for people who want advanced security in a simple and reliable form. Whether used at home, in the office, or for commercial spaces, this camera provides the confidence that safety is always in place. Choosing this model means choosing clear video quality, durable design, and peace of mind for the future.
| Camera Specification | |
|---|---|
| Brand | Uniview |
| Model | IPC2124LB-SF40-A |
| Camera Type | Bullet IP Camera |
| Form Factor | Mini Bullet |
| Usage | Indoor & Outdoor |
| Number of Cameras | 1 |
| Mega Pixel | 4MP |
| Image Sensor | 1/3" CMOS |
| Maximum Resolution | 2560 × 1440 |
| Supported Resolutions | 2560×1440, 2304×1296, 1920×1080, 720×576, 640×360, 704×288, 352×288 |
| Shutter Speed | Auto/Manual, 1–1/100000s |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Night Vision | Yes |
| Night Vision Mode | Black & White |
| S/N Ratio | >55dB |
| Minimum Illumination | 0.01 Lux (Color, F2.1, AGC ON), 0 Lux with IR |
| PTZ | No |
| 3-Axis Adjustment | Yes |
| Lens | |
| Lens Type | Fixed |
| Number of Lens | Single Lens |
| Focal Length | 4.0mm |
| Horizontal Viewing Angle | 79° |
| Vertical Viewing Angle | 42.3° |
| Diagonal Viewing Angle | 85.1° |
| Pan | 0–360° |
| Tilt | 0–90° |
| Rotate | 0–360° |
| DORI | |
| Detect | 90m |
| Observe | 36m |
| Recognize | 18m |
| Identify | 9m |
| Night Vision / IR | |
| IR Range | Up to 30m / 98ft |
| IR Wavelength | 850nm |
| IR Control | Auto / Manual |
| IR-Cut Filter | ICR with automatic switching |
| Night Image | Black & White |
| Image Features | |
| WDR | DWDR |
| Noise Reduction | 2D/3D DNR |
| Digital Defog | Yes |
| HLC | Supported |
| BLC | Supported |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Flip | Normal, Vertical, Horizontal, 180° |
| Smart IR | Supported as part of IR control |
| ROI | Up to 8 areas |
| Privacy Mask | Up to 4 areas |
| OSD | Up to 4 OSDs |
| Video | |
| Video Compression | H.265, H.264 |
| Maximum Resolution | 4MP / 2560×1440 |
| Frame Rate | 25–30fps |
| Dual Stream | Yes |
| Video Bitrate | 128Kbps–6144Kbps |
| U-Code | Supported |
| Network & Connectivity | |
| Ethernet | 1 × RJ45 |
| Network Speed | 10/100M Base-TX |
| Wi-Fi | No |
| SIM Support | No |
| PoE | Yes |
| PoE Standard | IEEE 802.3af |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS |
| Security | |
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF |
| Password Protection | Yes |
| Watermark | Yes |
| Motion Detection | Yes |
| Surge Protection | 4KV |
| Water Protection | IP67 |
| Technical Info | |
| Video Type | H.265, H.264 |
| Wavelength | 850nm |
| Mic & Speaker | No |
| Working Distance | 90 Meter |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,Qos,SSL/TLS |
| Storage & Audio | |
| Built-in Storage | No |
| MicroSD | Not specified |
| Microphone | No |
| Speaker | No |
| Two-way Audio | No |
| Power | |
| Power Supply | DC / PoE |
| DC Input | DC12V ±25% |
| PoE | IEEE 802.3af |
| Power Consumption | Approx. 5W |
| Battery Backup | No |
| Protection & Durability | |
| Water/Dust Protection | IP67 |
| Surge Protection | 4KV |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Storage Humidity | ≤95% RH, non-condensing |
| Physical Description | |
| Form Factor | Mini Bullet |
| Color | Black & White |
| Dimensions | 161 × 63 × 62mm |
| Weight | 360g |
| Material | Not specified |
| Warranty | |
| Warranty | 1 Year |
