Key Features
- 1*1000Base-X uplink SFP fiber port
- 2*10/100/1000Base-T uplink RJ45 ports
- 16*10/100/1000Base-T PoE ports
- Warranty 1 year
Categories:
Networking / Network Switch / PoE Switch / ONVBrand:
ONV SKU: GMKLO-691প্রযুক্তি পণ্যের বাজার অস্থিতিশীল হওয়ার কারণে যেকোন সময় মূল্য পরিবর্তন হতে পারে। তাই, অর্ডার করার পূর্বে পণ্যের মূল্য, স্টক ও ডেলিভারি সম্পর্কে জিজ্ঞাসা করতে যোগাযোগ করুন 01894-683430 ই নাম্বারে
General
- PoE ports 16*10/100/1000Base-T PoE ports
- Uplink ports 2*10/100/1000Base-T uplink RJ45 ports
- Ethernet Port Port 1-18 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
- Operation TEMP / Humidity -20°C~55°C, 5%~90% RH non condensing
- Storage TEMP / Humidity -40°C~80°C, 5%~95% RH non condensing
- Net /Gross Weight 1.75kg/ 2.25kg
- Dimension (L*W*H) 350*215*44mm
- Installation Desktop, Rack mounted
Chip
- Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
- Switching Capacity 38Gbps (Non-blocking)
- Forwarding Rate@64byte 28.28Mpps
- MAC 4K
- Buffer Memory 4M
- Jumbo Frame 9.2K
Power Sypply
- Power Supply Pin 1/2(+) 3/6(-)
- Max Power Per Port 30W, PoE+
- Total PWR / Input Voltage 160W/ (AC100-240V)
- Power Consumption Standby<12W, full load<160W
- Power Supply Built-in power supply, AC100~240V 50-60Hz, 3.0A
Warranty
- Warranty 1-Year
ONV-H3016PFD Gigabit 19-port PoE switch

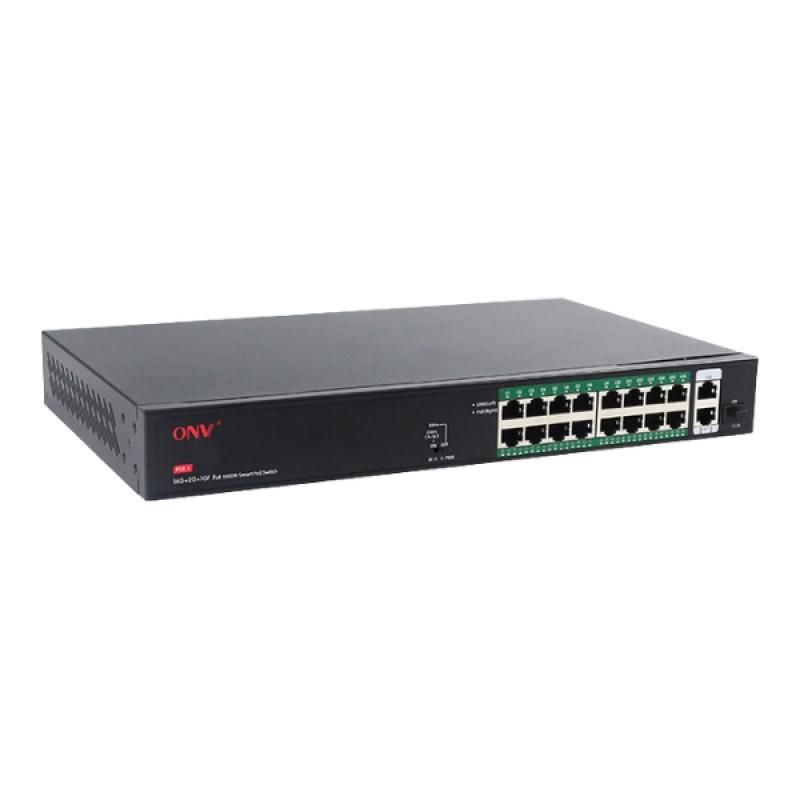

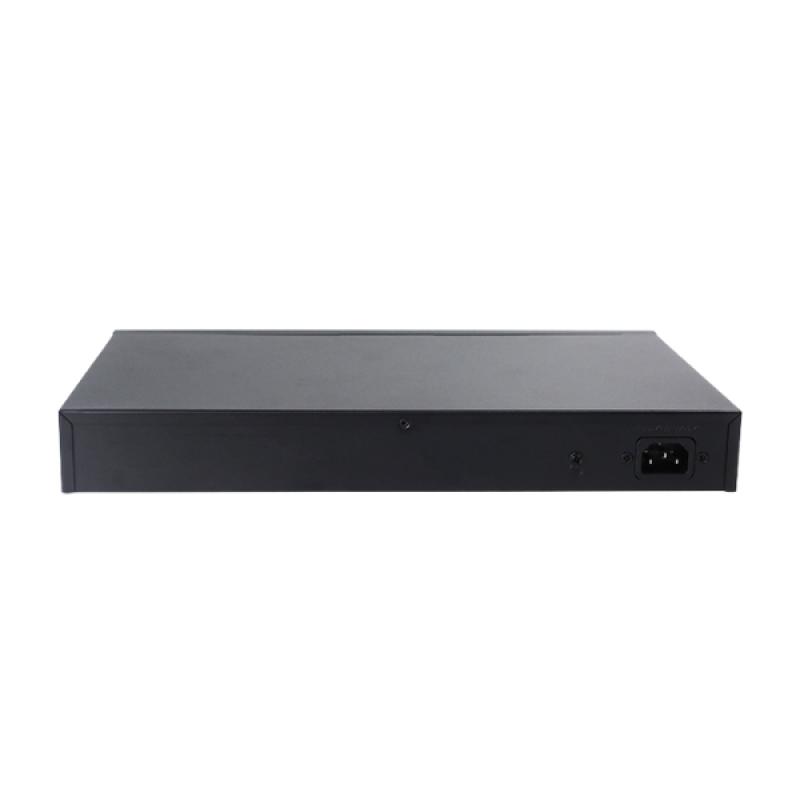

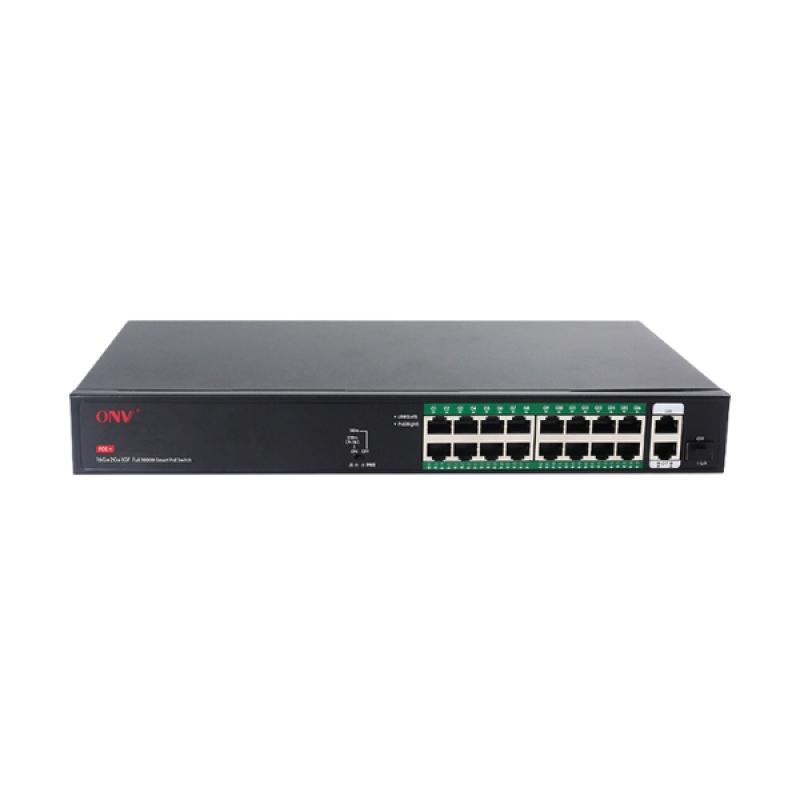

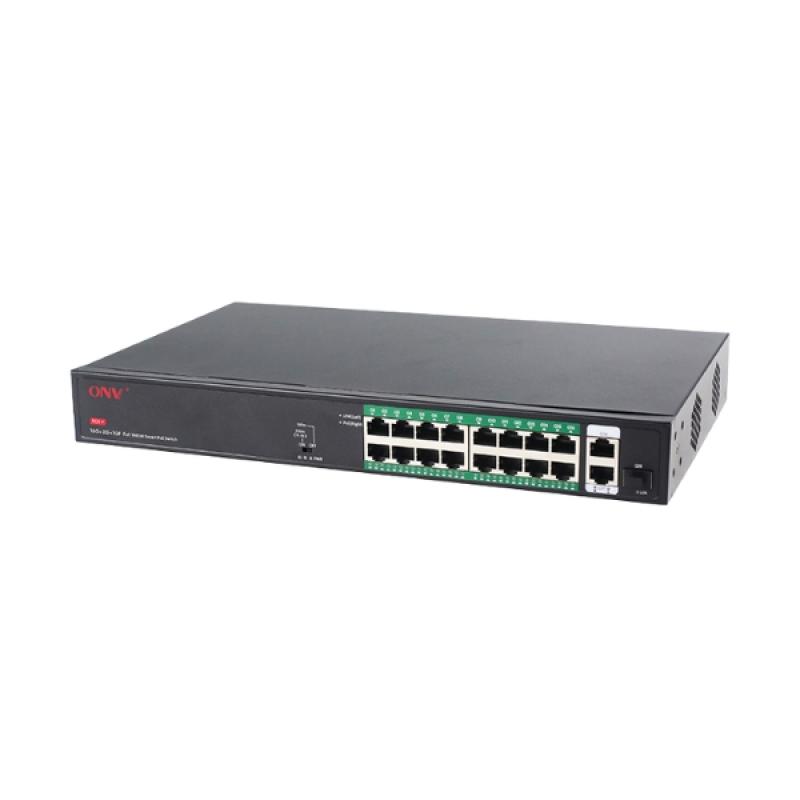

The ONV-H3016PFD Gigabit 19-port PoE Switch is a smart and high-performance network solution. It includes 16 PoE ports, 2 Gigabit uplink ports, and 1 SFP port. This switch is built to handle larger systems with many devices. It is a great choice for IP cameras, wireless access points, IP phones, and more. Each PoE port can provide both data and power through one cable. This reduces wiring and lowers the overall setup cost.
This switch supports standard IEEE 802.3af and 802.3at PoE protocols. Each PoE port can supply up to 30W of power. The total power budget is high enough to support all 16 ports at the same time. It is ideal for medium to large surveillance systems and business networks. The two uplink ports allow fast connection to NVRs or routers. The SFP port adds support for long-distance fiber connectivity.
You do not need any software or special setup. It is plug and play. Once you connect your devices, the switch begins working. It is easy to use even for users with no technical knowledge. It also supports extended mode. In this mode, the PoE transmission distance can reach up to 250 meters. This is very helpful for connecting far-away IP cameras or outdoor devices.
The switch has a strong metal body. It helps protect the internal parts and also keeps the switch cool during operation. Built-in surge protection ensures safety during unstable power conditions. It protects both the switch and the connected devices from electric shocks or lightning strikes.
Warranty 1 year
The ONV-H3016PFD uses intelligent power management. It gives each port the right amount of power based on the needs of the connected device. This improves power efficiency and avoids overload. Even when many devices are running at the same time, the switch remains stable. It delivers smooth data flow without interruption.
This switch is reliable for 24/7 operation. It keeps your network stable and secure. It is best suited for businesses, offices, hotels, schools, and CCTV installations. You can install it on a desktop or mount it in a standard 1U rack. Its compact and professional design makes it easy to fit in network cabinets.
The ONV-H3016PFD gives fast performance, stable power, and simple operation. It is a perfect choice for users who need more ports and strong network control without any complexity.
What is price of ONV-H3016PFD Gigabit 19-port PoE switch?
The latest price of the ONV-H3016PFD Gigabit 19-port PoE switch in Bangladesh is 15,499৳. You can buy the ONV-H3016PFD Gigabit 19-port PoE switch at the best price from our website or visit our office.
