Key Features
- 8X10/100M PoE Ports
- 2X100/1000M PoE Up-link Ports
- Switching Capacity 11.8Gbps
- Built-in 120 W power supply
- Warranty: 1-Year
Categories:
Networking / Network Switch / PoE Switch / ONVBrand:
ONV SKU: ZLB3S-880প্রযুক্তি যেহেতু দ্রুত পরিবর্তনশীল, তাই যেকোনো সময় মূল্য, স্টক ও ডেলিভারি সম্পর্কিত তথ্য পরিবর্তিত হতে পারে। অর্ডার করার পূর্বে মূল্য, স্টক ও ডেলিভারি সম্পর্কে জানতে যোগাযোগ করুন 01821051012 নাম্বারে।
General
- PoE ports 8*10/100Base-TX PoE ports
- Uplink ports 2*10/100/1000Base-T uplink ports
- Ethernet Port Port 1-8 can support 10/100Base-TX and port 9-10 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
- Operation TEMP / Humidity -20~+55°C, 5%~90% RH Non condensing
- Storage TEMP / Humidity -40~+75°C, 5%~95% RH Non condensing
- Net /Gross Weight 0.75kg / 1.0kg
- Dimension (L*W*H) 195*130*40mm
- Installation Desktop, Wall mounted
Chip
- Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3x
- Switching Capacity 11.8Gbps (Non-blocking)
- Forwarding Rate@64byte 4.17Mpps
- MAC 3k
- Buffer Memory 2M
Power Sypply
- Power Supply Pin 30W, PoE+
- Max Power Per Port 30W, PoE+
- Total PWR / Input Voltage 120W/ (AC100-240V)
- Power Consumption Standby<5W, Full load<120W
- Power Supply Built-in power supply, AC100~240V 50-60Hz, 2.2A
Warranty
- Warranty 1-Year

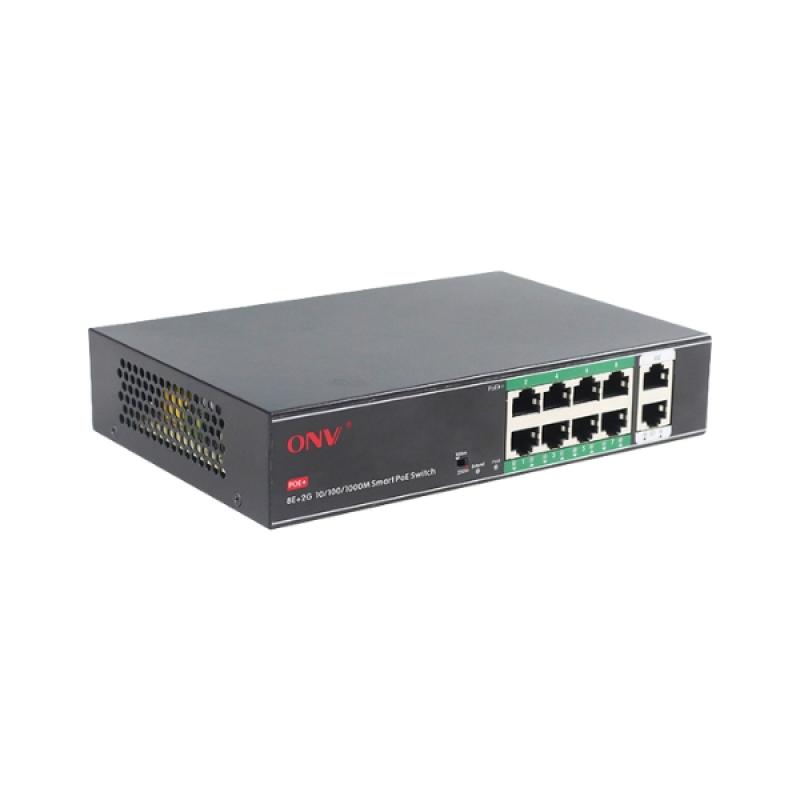

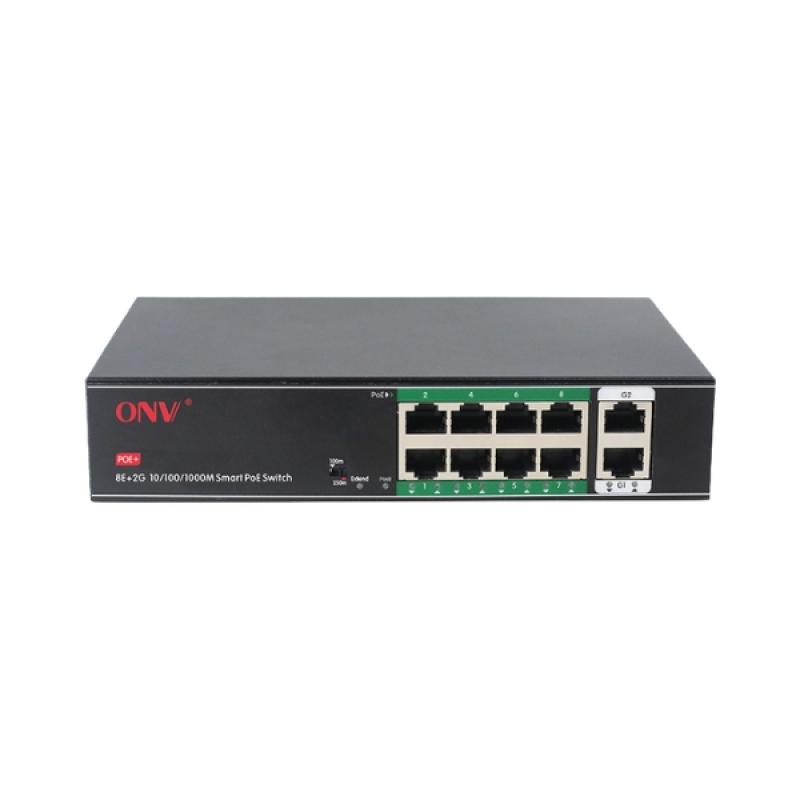

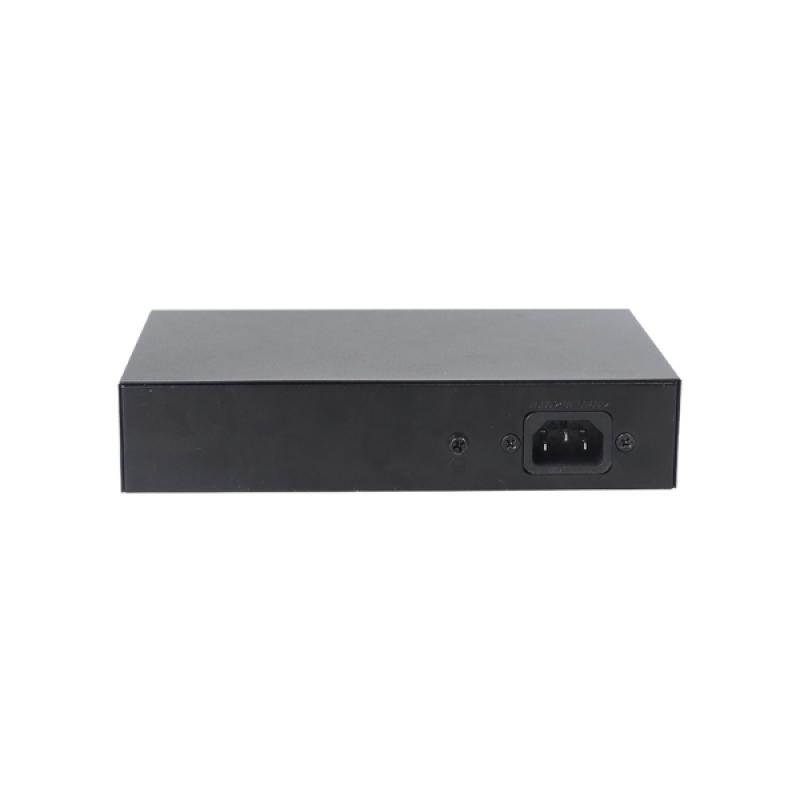

ONV-H1108PGL Gigabit Uplink 10-port PoE switch
The ONV-H1108PGL is a smartly engineered 10-port PoE switch designed to meet the needs of modern surveillance and IP networking environments. Equipped with 8 adaptive 10/100Mbps PoE ports and 2 gigabit uplink ports, it simplifies both data transmission and power delivery over a single Ethernet cable. This switch is ideal for environments where reliable performance and minimal installation complexity are essential, such as in IP camera deployments, office networks, and small enterprise setups.
Its robust metal casing ensures durability and heat dissipation, allowing the switch to operate stably even in demanding indoor conditions. The two dedicated gigabit uplink ports ensure a high-speed connection to the core network or NVRs, maintaining smooth data flow even when all PoE ports are active. This prevents bottlenecks and ensures that high-definition video streams and network traffic are transmitted without interruption.
With built-in intelligent PoE detection, the ONV-H1108PGL automatically recognizes PoE-supported devices and delivers the necessary power without damaging non-PoE equipment. It eliminates the need for software configuration, offering a true plug-and-play setup. Its internal power supply is designed for safety, with overload protection and short-circuit safeguards that prevent failure due to excess power draw.
The ONV-H1108PGL is particularly suitable for CCTV installations where multiple IP cameras need to be powered and connected over distance, making cable management clean and professional. Its design prioritizes long-term use, seamless connectivity, and real-world practicality — offering performance, protection, and simplicity in one solid unit.
What is the price of the ONV-H1108PGL Gigabit Uplink 10-port PoE switch?
The latest price of ONV-H1108PGL Gigabit Uplink 10-port PoE switch in Bangladesh is 5,800৳. You can buy the ONV-H1108PGL Gigabit Uplink 10-port PoE switch at the best price from our website or visit our office.
