ONV-H1024PLS Gigabit Uplink 26-port PoE Switch
৳18500 ৳20000
Chat on WhatsApp
Key Features
- Model: ONV-H1024PLS
- 24*10/100M PoE Ports
- 2*100/1000M PoE Up-link Port
- Port-1-24 supports 250m transmission
- Built-in 250 W power supply
- Warranty: 1-Year
Categories:
Networking / Network Switch / PoE Switch / ONVBrand:
ONV SKU: YJXZ3-146প্রযুক্তি পণ্যের বাজার অস্থিতিশীল হওয়ার কারণে যেকোন সময় মূল্য পরিবর্তন হতে পারে। তাই, অর্ডার করার পূর্বে পণ্যের মূল্য, স্টক ও ডেলিভারি সম্পর্কে জিজ্ঞাসা করতে যোগাযোগ করুন 01894-683430 ই নাম্বারে
General
- PoE ports 24*10/100Base-TX PoE ports
- Uplink ports 2*10/100/1000Base-T uplink RJ45 ports
- Ethernet Port Port 1-24 can support 10/100Base-TX and port 25-26 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
- Operation TEMP / Humidity -20~+55°C, 5%~90% RH Non condensing
- Storage TEMP / Humidity -40~+75°C, 5%~95% RH Non condensing
- Net /Gross Weight 1.85kg / 2.4kg
- Dimension (L*W*H) 330*204*44mm
- Installation Desktop, wall mounted, rack mounted
Chip
- Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
- Switching Capacity 14.8Gbps (Non-blocking)
- Forwarding Rate@64byte 6.55Mpps
- MAC 16K
- Buffer Memory 4M
- Jumbo Frame 10K
Power Sypply
- Power Supply Pin 1/2(+) 3/6(-)
- Max Power Per Port 30W, PoE+
- Total PWR / Input Voltage 250W (AC100-240V)
- Power Consumption Standby <20W, Full load <250W
- Power Supply Built-in power supply, AC100~240V 50-60Hz, 4.1A
Warranty
- Warranty 1-Year

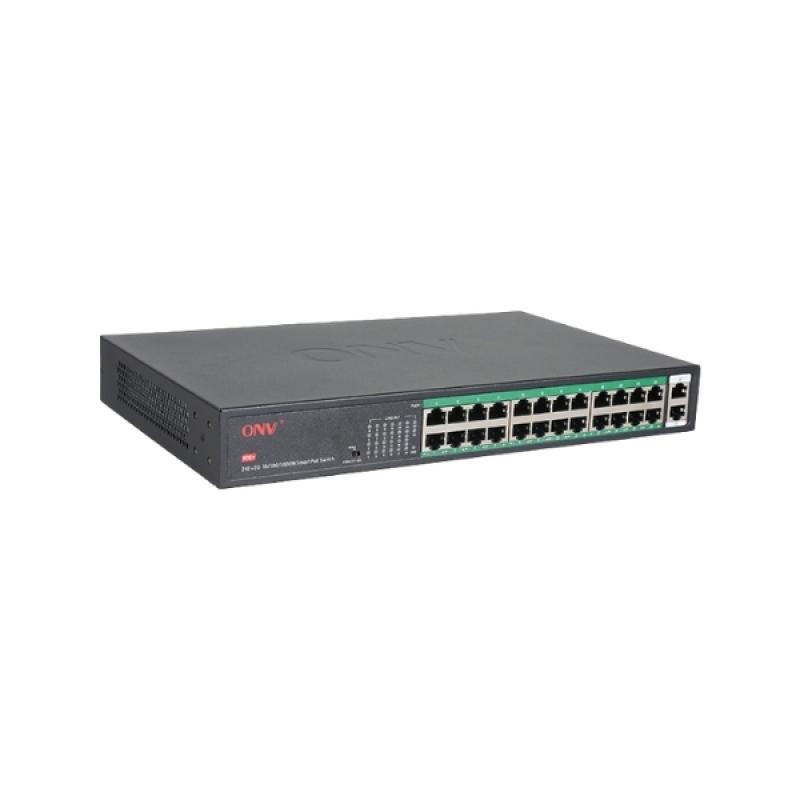

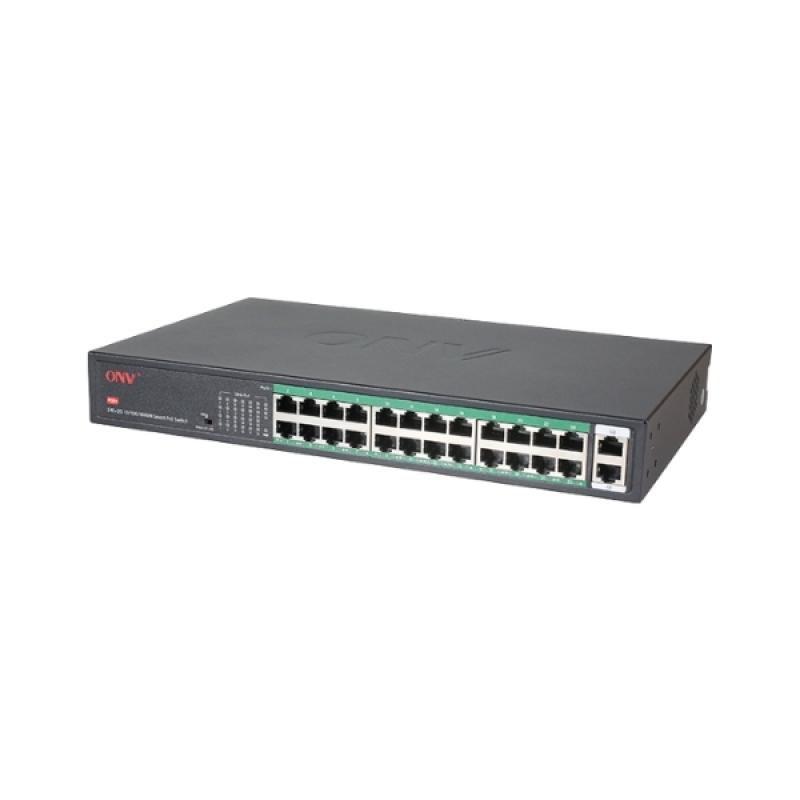

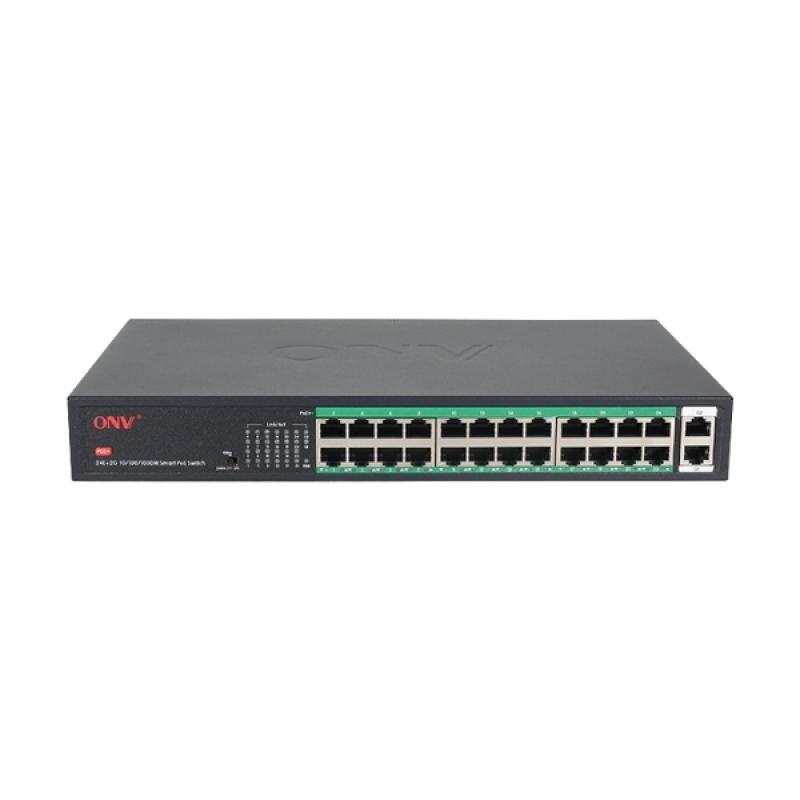

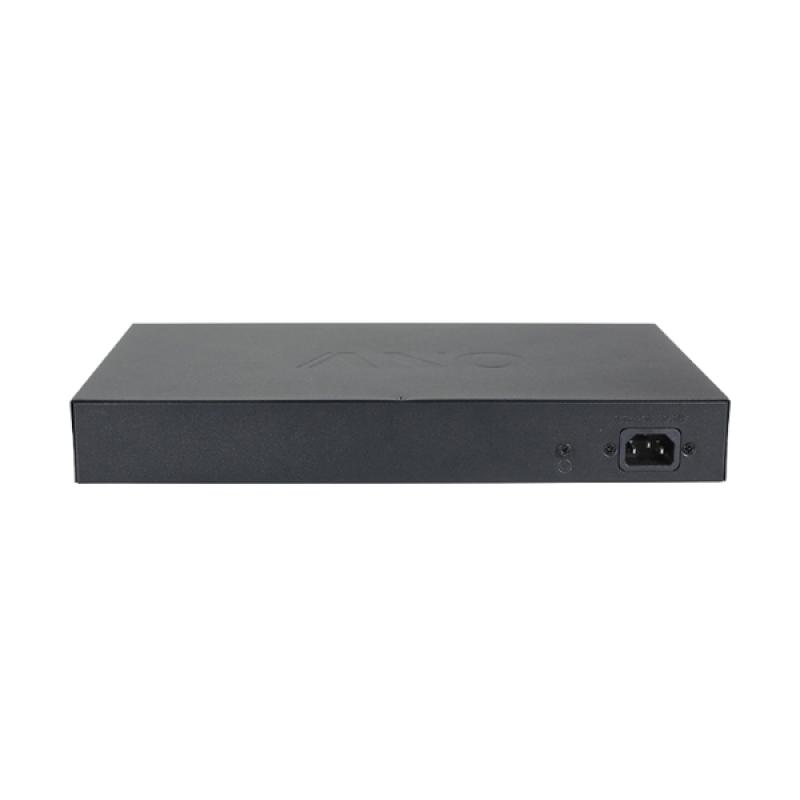

ONV-H1024PLS Gigabit Uplink 26-port PoE Switch
The ONV-H1024PLS is a high-performance 26-port PoE switch designed to meet the growing needs of modern networks. It combines reliable power delivery with fast data transfer, making it an ideal choice for small offices, large buildings, CCTV systems, and commercial installations. With 24 PoE-enabled ports and 2 additional gigabit uplink ports, it provides both power and data to connected devices through a single Ethernet cable. This saves time, reduces cabling costs, and keeps your setup clean and simple.
This switch is perfect for powering devices like IP cameras, wireless access points, VoIP phones, and smart intercom systems. Since it supports standard IEEE 802.3af/at PoE protocols, you don’t need to worry about compatibility. It automatically detects the power needs of each device and supplies just the right amount of energy. This prevents overloading and protects your equipment. It also means you don’t need extra power outlets near each device, which is a big advantage in places like stairwells, ceilings, or long corridors.
With two gigabit uplink ports, the ONV-H1024PLS makes it easy to connect your switch to the internet, a router, or a backbone network. These uplink ports ensure smooth and fast data flow, especially when handling multiple devices at the same time. Even when all 24 PoE ports are in use, the switch keeps your network stable and responsive. It supports large file transfers, HD video streams, and other bandwidth-heavy tasks without slowing down. This makes it a great choice for real-time applications like video surveillance and VoIP calling.
Another great feature of this switch is its plug-and-play design. You don’t need any software, setup, or network knowledge to use it. Just connect your devices, and it starts working right away. Whether you’re an IT technician or a first-time installer, you’ll find it very user-friendly. The switch also supports extended transmission mode, allowing some ports to reach up to 250 meters in distance. This is very useful when you need to connect faraway devices without adding extra hardware.
The ONV-H1024PLS is made with a strong metal case that keeps the internal parts safe and cool. Its design is compact and solid, which helps it last longer even in demanding environments. It can be mounted on a rack, placed on a desk, or fixed to a wall, giving you flexibility based on your workspace. Even though it’s built tough, it operates quietly, so it won’t cause any noise in your office or control room.
This PoE switch is also energy-efficient. It only uses power when needed and can lower energy use when traffic is low. This helps reduce electricity bills and supports green networking. It also offers protection from short circuits, overload, and high voltage. This adds another layer of safety for both the switch and your connected devices. Its operating temperature range makes it suitable for various indoor environments, from cool air-conditioned rooms to warmer utility spaces.
Whether you are setting up a new office, upgrading a surveillance system, or expanding your current network, the ONV-H1024PLS gives you a strong and stable connection. It offers a perfect mix of performance, durability, and simplicity. You get 24 ports to power your essential devices and 2 uplinks to keep your core network fast and reliable. If you're looking for a professional-grade switch that is easy to use, built to last, and ready for real-world work, this one delivers everything you need.
What is the price of ONV-H1024PLS Gigabit Uplink 26-port PoE Switch?
The latest price of the ONV-H1024PLS Gigabit Uplink 26-port PoE Switch in Bangladesh is 18,500৳. You can buy the ONV-H1024PLS Gigabit Uplink 26-port PoE Switch at the best price from our website or visit our office.
