Key Features
- 16X10/100M PoE Ports
- 2X100/1000M PoE Up-link Ports
- Port 1-16 Support af/at PoE Standard
- Built-in 150 W power supply
- Warranty: 1-Year
Categories:
Networking / Network Switch / PoE Switch / ONVBrand:
ONV SKU: NLCCS-889প্রযুক্তি পণ্যের বাজার অস্থিতিশীল হওয়ার কারণে যেকোন সময় মূল্য পরিবর্তন হতে পারে। তাই, অর্ডার করার পূর্বে পণ্যের মূল্য, স্টক ও ডেলিভারি সম্পর্কে জিজ্ঞাসা করতে যোগাযোগ করুন 01894-683430 ই নাম্বারে
General
- PoE ports 16*10/100Base-TX PoE ports
- Uplink ports 2*10/100/1000Base-T uplink ports
- Ethernet Port Port 1-16 support 10/100Base-TX and port 17-18 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
- Operation TEMP / Humidity -20~+55°C, 5%~90% RH Non condensing
- Storage TEMP / Humidity -40~+75°C, 5%~95% RH Non condensing
- Net /Gross Weight 1.3kg / 1.75kg
- Dimension (L*W*H) 270*181*44.5mm
- Installation Desktop, Wall mounted, 1U 19’’ Rack mounted
Chip
- Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
- Switching Capacity 14.8Gbps (Non-blocking)
- Forwarding Rate@64byte 5.36Mpps
- MAC 16K
- Buffer Memory 4M
- Jumbo Frame 10K
Power Sypply
- Power Supply Pin 1/2(+) 3/6(-)
- Max Power Per Port 30W, PoE+
- Total PWR / Input Voltage 160W (AC100-240V)
- Power Consumption Standby<15W, Full load <160W
- Power Supply Built-in power supply, AC100~240V 50-60Hz, 3.0A
Warranty
- Warranty 1-Year

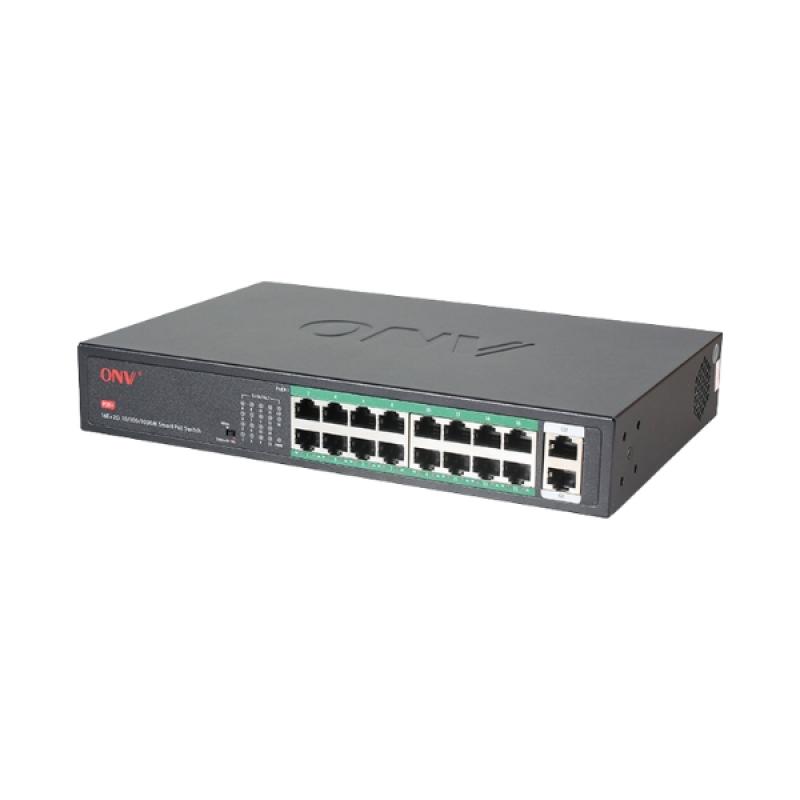

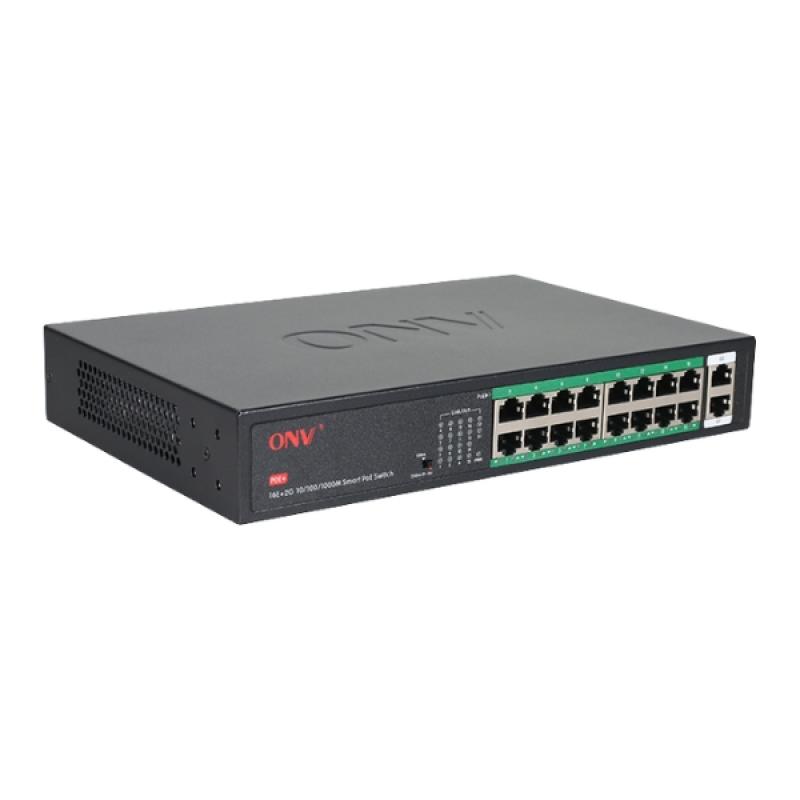

ONV-H1016PLS Gigabit Uplink 18-port PoE Switch
The ONV-H1016PLS Gigabit uplink 18-port PoE switch is a high-performance solution designed for seamless power and data transmission in modern IP-based networks. This professional-grade switch features 16 10/100Mbps adaptive PoE ports and 2 10/100/1000Mbps uplink Ethernet ports, making it an ideal choice for small to medium surveillance installations, office networks, and smart building infrastructure. With its integrated PoE support, users can power up IP cameras, VoIP phones, wireless APs, and other PoE-enabled devices directly through the network cables, reducing the need for additional power sources and minimizing installation complexity.
Built with a fan-cooled industrial-grade metal shell, the switch ensures stable and reliable performance even under continuous heavy use. It supports a total PoE power budget of up to 160W, with each PoE port capable of delivering up to 30W, allowing flexible deployment of high-power devices such as PTZ cameras and dual-band access points. For added versatility, ports 9 to 16 support 250-meter long-distance PoE transmission under the extended mode, giving installers the flexibility to connect far-end devices without signal loss.
The ONV-H1016PLS Gigabit uplink 18-port PoE switch is equipped with intelligent power detection, lightning protection of 4KV, and short-circuit and overload protection to ensure network safety and device longevity. This switch uses a plug-and-play setup that requires no software configuration, making it easy for installers to quickly deploy and manage the network. The addition of two gigabit uplink ports enables smooth data forwarding to routers or NVRs without bottlenecks, ensuring efficient bandwidth allocation across the network.
Its operating temperature range of -20°C to 55°C ensures reliable functionality in various indoor and semi-industrial environments. With high compatibility for IEEE 802.3af/at standards, this switch supports a wide range of network devices, offering cost-effective and centralized management for power and data. Whether it’s for powering a video surveillance network, expanding a hotel’s network infrastructure, or supporting smart building systems, this switch delivers outstanding performance and simplified installation.
What is the price of ONV-H1016PLS Gigabit Uplink 18-port PoE Switch
The latest price of ONV-H1016PLS Gigabit Uplink 18-port PoE Switch in Bangladesh is 12,299৳. You can buy the ONV-H1016PLS Gigabit Uplink 18-port PoE Switch at the best price from our website or visit our office.
