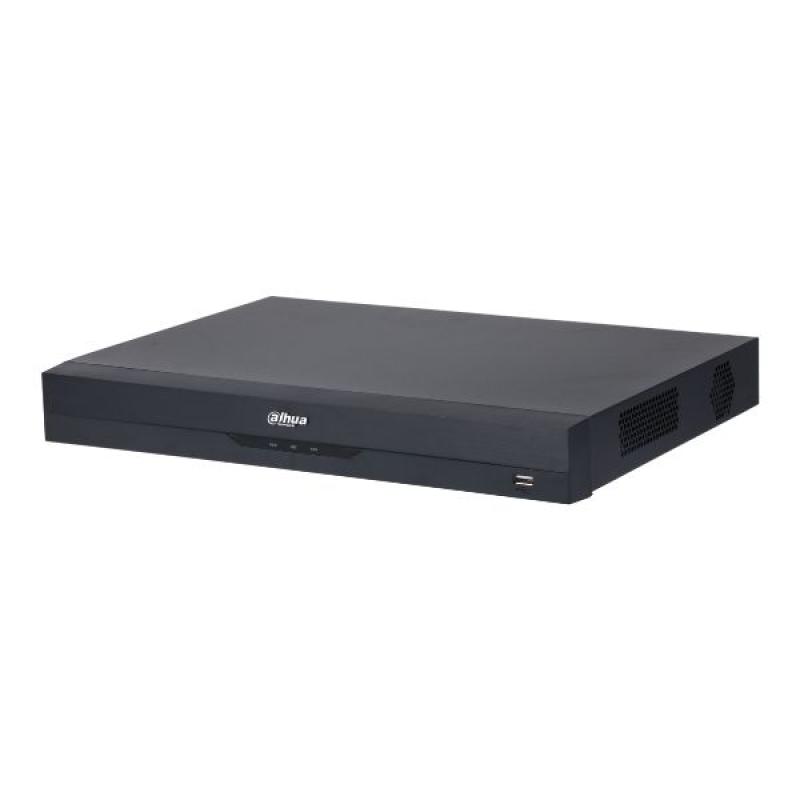

Dahua NVR5216-EI 16 Channels 1U 2HDDs WizSense Network Video Recorder NVR
Key FeaturesModel - NVR5216-EIMax. decoding capability - 32 × 1080p@30 fps or 16× 4MP@30 fps.Number of Input Channel - 16 ChannelInternal HDD SATA - Up to 20TBAlarm Input - 4 chann...
Dahua NVR5216-EI 16 Channels 1U 2HDDs WizSense Network Video Recorder NVR
Quick Overview
- Model - NVR5216-EI
- Max. decoding capability - 32 × 1080p@30 fps or 16× 4MP@30 fps.
- Number of Input Channel - 16 Channel
- Internal HDD SATA - Up to 20TB
- Alarm Input - 4 channels
The Dahua NVR5216-EI is a potent 16-channel WizSense network video recorder made to provide sophisticated surveillance capabilities together with insightful video analytics. This NVR is a great option for medium- to large-scale security applications in offices, retail establishments, warehouses, and corporate facilities because of its 1U rack-mountable design and support for up to two HDDs. Because of its consistent performance and large storage capacity, it is a dependable option for ongoing monitoring.
The NVR5216-EI enables smooth integration with high-definition cameras for incredibly clear recording and playback by supporting up to 16 IP camera inputs. With its 4K ultra-high quality output, surveillance footage is guaranteed to have exact clarity and detail. With its cutting-edge H.265 and H.264 compression technologies, it preserves excellent video quality while drastically lowering bandwidth and storage requirements.
As part of Dahua's WizSense line, this NVR integrates AI-powered services such as intelligent motion detection, human and vehicle classification, and real-time warnings for better security efficiency. These clever features give consumers piece of mind and speedier reaction times by lowering false alarms and guaranteeing accurate identification of important events.
The system's intuitive interface makes it easy for both non-technical users and IT specialists to set up and use on a daily basis. From smartphones, tablets, or PCs, customers may remotely see live broadcasts, playback recordings, and control system settings with Dahua's mobile app. Additionally, there are numerous USB connections for quick video backup and export.
Overall, the Dahua NVR5216-EI 16 Channels 1U 2HDDs WizSense Network Video Recorder NVR is a feature-rich, compact device that combines high-performance video management, flexible storage options, and powerful AI capabilities. For companies and organizations looking for a dependable, smart, and future-proof network video recorder for their security setup, this is the best option.
| General Specification | |
|---|---|
| Brand | Dahua |
| Model | NVR5216-EI |
| System | |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Display | |

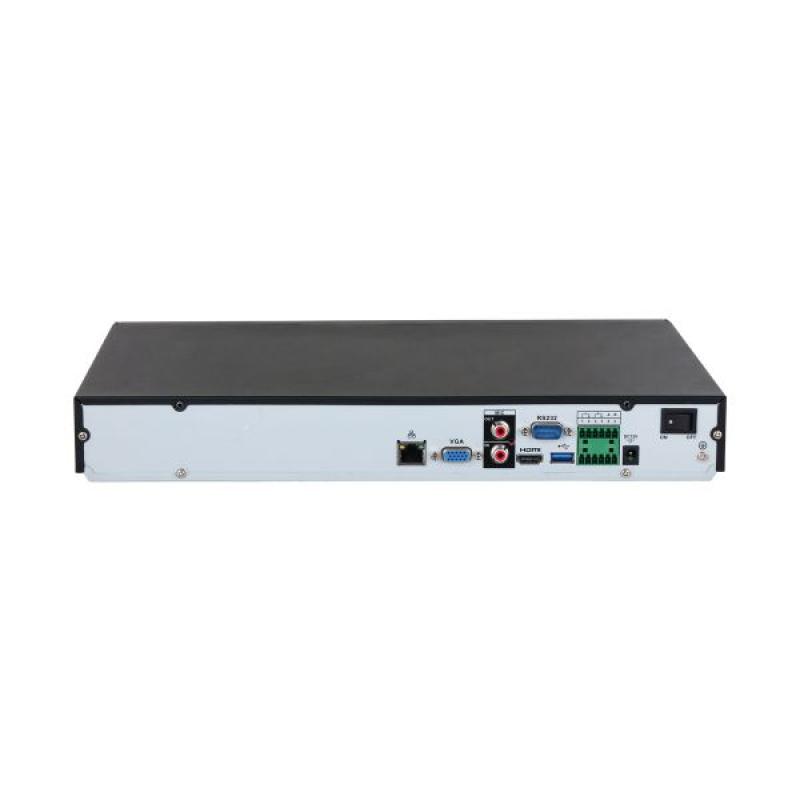

| Interface | 1 × VGA Output; 1 × HDMI Output; Supports Simultaneous Video Sources Output for VGA and HDMI |
| Resolution | VGA: 1920 × 1080; 1280 × 1024; 1280 × 720 HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720 |
| Decoding Capacity | AI Disabled: 2-Channel 32 MP@25 fps; 2-Channel 24 MP@25 fps; 4-Channel 16 MP@30 fps; 5-Channel 12 MP@30 fps; 8-Channel 8 MP@30 fps; 10-Channel 6 MP@30 fps; 12-Channel 5 MP@30 fps; 16-Channel 4 MP@30 fps AI Enabled: 1-Channel 32 MP@25 fps; 1-Channel 24 MP@25 fps; 2-Channel 16 MP@30 fps; 4-Channel 12 MP@30 fps; 6-Channel 8 MP@30 fps; 8-Channel 6 MP@30 fps; 8-Channel 5 MP@30 fps; 12-Channel 4 MP@30 fps |
| Multi-Screen Display | Main Screen: 1/4/8/9/16; Sub Screen: 1/4/8/9/16 |
| Recording | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Recording Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF; QCIF |
| Record Mode | General; Motion Detection; Intelligent; Alarm; POS |
| Video Detection & Alarm | |
| Alarm Input | 4 Channels |
| Playback & Backup | |
| Playback Function | Instant Playback; General Playback; Event Playback; Tag Playback; Smart Playback (Face and Motion Detection) |
| Backup Mode | USB Device and Network |
| Network | |
| Ethernet Port | 1 × RJ-45, 10/100 Mbps Self-Adaptive Ethernet Port |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search; P2P; Auto Register |
| Storage | |
| Internal HDD | 2 × SATA Ports; Each Disk Up to 20 TB; Limit Varies Depending on Environment Temperature |
| Auxiliary Interface | |
| USB | 2 × USB 2.0 (1 Front; 1 Rear) |
| Power | |
| Power Supply | 12 VDC, 4 A |
| Power Consumption | Total Output of NVR ≤ 10 W (Without HDD) |
| Component Environment | |
| Operational Conditions | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Conditions | –20 °C to +60 °C (–4 °F to +140 °F) |
| Construction | |
| Dimensions | 375.0 × 284.4 × 56.0 mm (W × D × H) |
| Net Weight | 1.57 kg |
| Gross Weight | 2.73 kg |
| Warranty | |
| Manufacturing Warranty | 1 Year |
