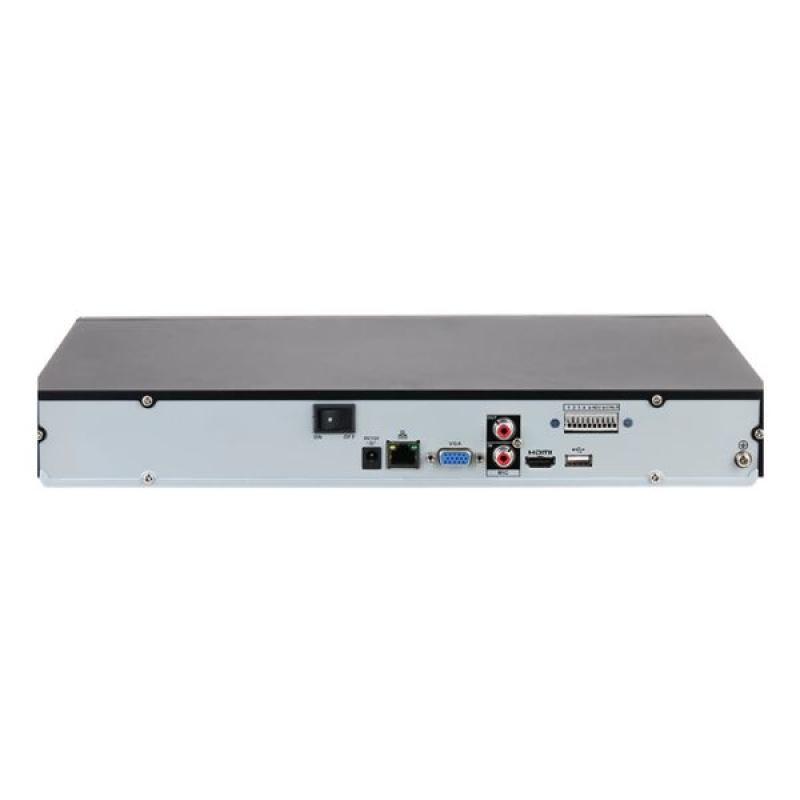

Dahua NVR4232-4KS3 32 Channel Network Video Recorder NVR
Key FeaturesModel - NVR4232-4KS3H.265/H.264/MJPEG/MPEG4 codec decodingNumber of Input Channel - 32 ChannelNumber HDD Interface (SATA) - 2 SATAMax. Storage Support - 40TB
Dahua NVR4232-4KS3 32 Channel Network Video Recorder NVR
Quick Overview
- Model - NVR4232-4KS3
- H.265/H.264/MJPEG/MPEG4 codec decoding
- Number of Input Channel - 32 Channel
- Number HDD Interface (SATA) - 2 SATA
- Max. Storage Support - 40TB
The Dahua NVR4232-4KS3 32 Channel Network Video Recorder NVR is a 32-channel network video recorder with outstanding performance created for extensive surveillance systems that need dependable operation and excellent video quality. With its ability to record and play back in real time and support up to 32 IP camera inputs, this NVR is a great option for offices, warehouses, commercial facilities, and companies.
The NVR4232-4KS3 produces incredibly clear video output with support for 4K ultra-high definition quality, precisely capturing every detail. Its cutting-edge H.265 and H.264 compression methods preserve exceptional image quality while lowering storage needs and network bandwidth consumption. Numerous HDMI and VGA outputs offer a variety of display possibilities, and USB ports make data transfer and video backup easy.
With its user-friendly interface that makes installation, configuration, and daily management easier, the NVR4232-4KS3 is made to be operated by anyone. Through Dahua's mobile app on PCs, tablets, or smartphones, users can remotely control system settings, watch live broadcasts, and playback records, guaranteeing efficient monitoring from any location.
Overall, the Dahua NVR4232-4KS3 32 Channel Network Video Recorder NVR offers dependable video surveillance for demanding security applications since it is designed for stability, efficiency, and scalability. The Dahua NVR4232-4KS3 is a reliable and expert option for extensive IP surveillance systems because it combines high channel capacity, sophisticated video compression, and flexible remote access.
| General Specification | |
|---|---|
| Brand | Dahua |
| Model | NVR4232-4KS3 32 |
| Type | NVR |
| Video Specification | |
| Number of Input Channel | 32 Channel |
| Video Compression / Format | Smart H.265+; H.265; Smart H.264+; H.264 |
| Video Output (VGA) | 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Output (HDMI) | 1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Max. Video Recording Resolution | 3840 × 2160 |
| Audio Specification | |
| Audio Input Channel (RCA) | 1-Channel RCA |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Audio Output Channel | 1-Channel RCA |
| Recording & Decoding | |
| Decoding Capability | AI Disabled: 1-Channel 12 MP@30 fps; 2-Channel 8 MP@30 fps; 3-Channel 5 MP@30 fps; 4-Channel 4 MP@30 fps; 8-Channel 1080p@30 fps. AI Enabled: 1-Channel 12 MP@30 fps; 1-Channel 8 MP@30 fps; 2-Channel 5 MP@30 fps; 3-Channel 4 MP@30 fps; 7-Channel 1080p@30 fps |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search |
| Network Interface (RJ45) | 1 × 10/100/1000 Mbps Ethernet Port, RJ-45 |
| PoE Interface | No |
| Storage & Interface | |
| Number of HDD Interface (SATA) | 2 SATA |
| Max. Storage Support | 40 TB |
| USB Port | 2 × USB 2.0 (1 Front, 1 Rear) |
| Technical Specification | |
| Main Processor | Industrial-Grade Processor |
| Display Split | Main Screen: 1/4/8/9/16/25/36; Sub Screen: 1/4/8/9/16 (AI Disabled). Main Screen: 1/4/8/9/16; Sub Screen: 1/4/8/9/16 |
| Incoming Bandwidth | 160 Mbps (AI Disabled); 80 Mbps (AI Enabled) |
| Outgoing Bandwidth | 60 Mbps |
| Privacy Masking | Yes |
| Compatibility | |
| Operating System | Embedded Linux |
| Supported Camera Models | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Power | |
| Power Supply | 12 VDC, 4 A |
| Physical Specification | |
| Color | Black |
| Dimensions | 375.0 × 282.9 × 53.0 mm |
| Weight | 1.49 kg |
| AI & Alarm Features | |
| Feature | AI by Camera: Face Detection; Face Recognition; Perimeter Protection; SMD Plus; People Counting; Stereo Analysis; Heat Map |
| General Alarm | Motion Detection; Privacy Masking; Video Loss; Scene Changing; PIR Alarm; IPC External Alarm |
| Anomaly Alarm | Camera Disconnection; Storage Error; Disk Full; IP Conflict; MAC Conflict; Login Locked; Cybersecurity Exception |
| Intelligent Alarm | Face Detection; Face Recognition; Perimeter Protection; SMD Plus; People Counting; Stereo Analysis; Heat Map |
| Alarm Linkage | Record; Snapshot; IPC External Alarm Output; Audio; Buzzer; Log; Preset; Email |
| Additional Features | |
| Operating Interface | Web; Local GUI |
| AI by Recorder | SMD Plus |
| Face Attributes | Gender; Age Group; Glasses; Expressions; Face Mask; Beard |
| Face Detection Performance of AI by Camera | 6 Channels |
| Face Recognition Performance of AI by Camera | 6 Channels |
| SMD Plus by Recorder | 2 Channels; Secondary Filtering for Human and Motor Vehicle |
| SMD Plus by Camera | 6 Channels |
| Resolution | 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Record Mode | Record Mode |
| Playback Mode | Instant Playback; General Playback; Event Playback; Tag Playback; Smart Playback |
| Environmental | |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | 10%–93% RH, Non-Condensing |
| Warranty | |
| Warranty | 2 Year (Without Adapter) |
