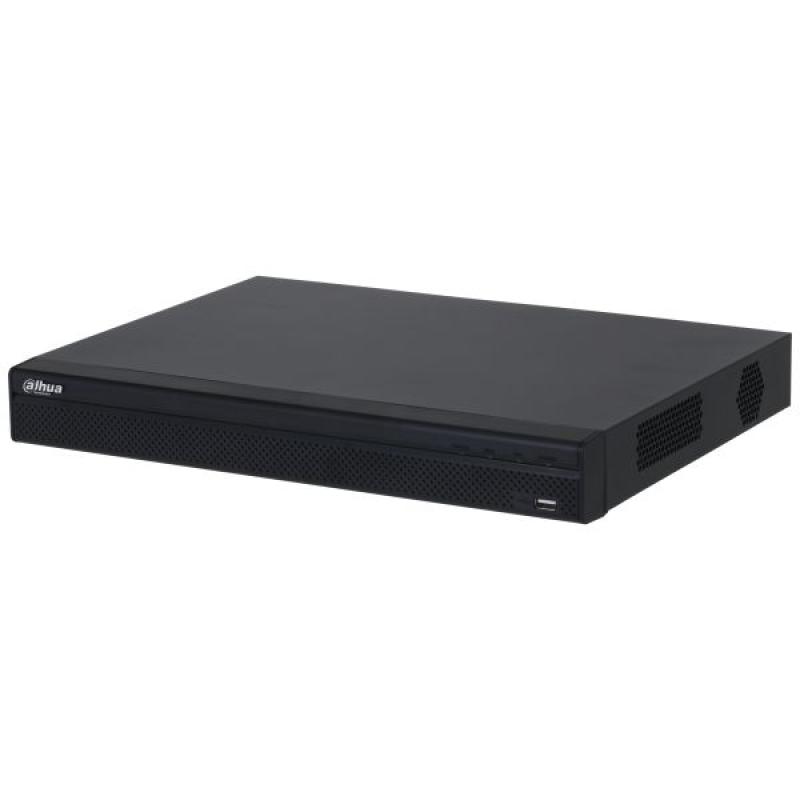

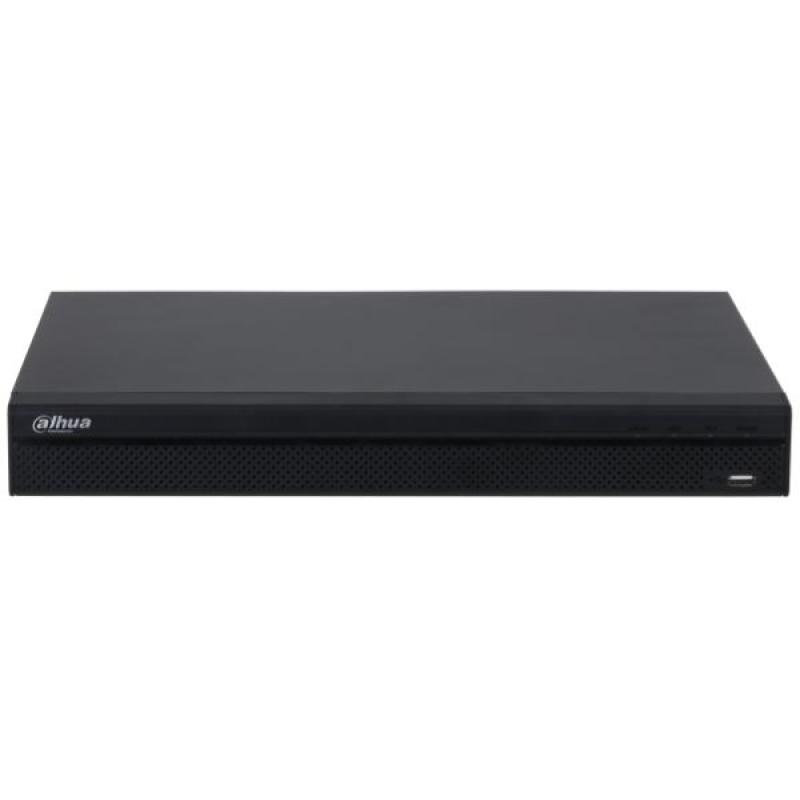

Dahua NVR2216-4KS3 16 Channel Lite Network Video Recorder NVR
Key FeaturesModel - NVR2216-4KS3Ai by Recorder Supports 4-Channel Smd PlusNumber of Input Channel - 16 ChannelMax. 144 Mbps Incoming recording BandwidthSupports IP Cameras with a R...
Dahua NVR2216-4KS3 16 Channel Lite Network Video Recorder NVR
Quick Overview
- Model - NVR2216-4KS3
- Ai by Recorder Supports 4-Channel Smd Plus
- Number of Input Channel - 16 Channel
- Max. 144 Mbps Incoming recording Bandwidth
- Supports IP Cameras with a Resolution Up to 12 MP
The Dahua NVR2216-4KS3 16 Channel Lite Network Video Recorder NVR is a powerful 16-channel Lite network video recorder designed to reliably and efficiently manage medium- to large-scale surveillance systems. It provides smooth recording and playback for up to 16 IP camera inputs, guaranteeing total security coverage for commercial buildings, offices, warehouses, or apartment complexes.
The NVR offers crystal-clear video output with support for 4K ultra-high definition quality, making it possible to precisely capture every detail. With its cutting-edge H.265 and H.264 compression technologies, it preserves excellent image quality while drastically lowering bandwidth and video backup, while its HDMI and VGA outputs guarantee a variety of display options.
The operating system provided by the NVR2216-4KS3 is easy to use, making setup, installation, and day-to-day administration simpler. It is easy for people with minimal technical knowledge to set up and keep an eye on their security system. Users may ensure 24/7 monitoring from any location by remotely accessing live video streams or playing recordings on PCs, tablets, or smartphones via Dahua's mobile application.
Overall, the Dahua NVR2216-4KS3 16 Channel Lite Network Video Recorder NVR is designed for performance and stability, and it has strong features including scalable storage, dependable data transmission, and sophisticated video analytics that make it appropriate for expanding security requirements. Because it combines robust capability with cost, the Dahua NVR2216-4KS3 is a logical choice for companies and individuals looking for dependable, excellent monitoring without unnecessary complexity.
| General Specification | |
|---|---|
| Brand | Dahua |
| Model | NVR2216-4KS3 |
| Type | 16 Channel NVR |
| Video Info | |
| Number of Input Channel | 16 Channel |
| Video Compression / Format | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Video Output (VGA) | 1 VGA: 1920 × 1080; 1280 × 1024; 1280 × 720 |

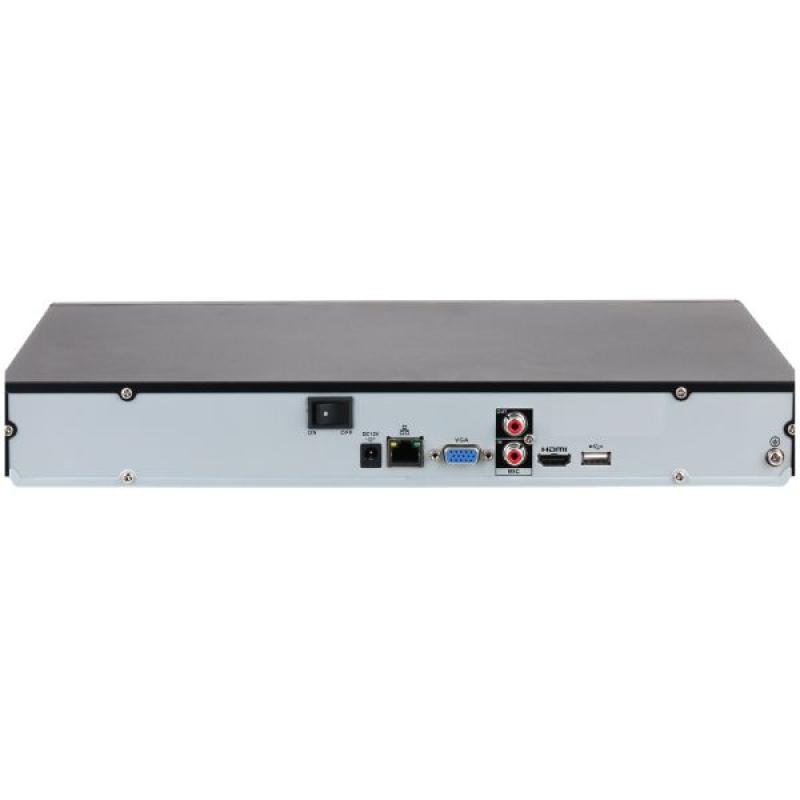

| Video Output (HDMI) | 1 HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720 |
| Video Recording Resolution | 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF; QCIF |
| Max. Video Recording Resolution | 3840 × 2160 |
| Audio Info | |
| Audio Input Channel (RCA) | 1-Channel RCA |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Audio Output Channel | 1-Channel RCA |
| Recording & Decoding | |
| Decoding Capability | AI Disabled: 1-Channel 12 MP@30 fps; 1-Channel 8 MP@30 fps; 2-Channel 6 MP@30 fps; 2-Channel 5 MP@30 fps; 3-Channel 4 MP@30 fps; 6-Channel 1080p@30 fps AI Enabled: 1-Channel 8 MP@30 fps; 1-Channel 6 MP@30 fps; 1-Channel 5 MP@30 fps; 2-Channel 4 MP@30 fps; 4-Channel 1080p@30 fps |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search; P2P; Auto Registration |
| Network Interface (RJ45) | 1 × RJ-45 10/100/1000 Mbps |
| PoE Interface | No |
| Auxiliary Interface | |
| Number of HDD Interface (SATA) | 2 SATA |
| Max. HDD Support (GB, TB) | 40 TB |
| Max. Storage Support | 40 TB |
| USB Port | 2 × USB 2.0 |
| Technical Info | |
| Main Processor | Industrial-grade processor |
| Incoming Bandwidth | AI Disabled: 144 Mbps; AI Enabled: 72 Mbps |
| Outgoing Bandwidth | AI Disabled: 144 Mbps Recording and 72 Mbps; AI Enabled: 72 Mbps Recording and 36 Mbps |
| Interoperability | ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Compatibility | |
| Operating System | Embedded Linux |
| Third-Party Camera Access | ONVIF |
| Mobile Phone Access | iOS; Android |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Power Info | |
| Power Supply | 12 VDC, 4 A |
| Approx. Power Consumption | <10 W (Without HDD) |
| Physical Description | |
| Color | Black |
| Dimensions | 375.0 × 282.9 × 53.0 mm |
| Weight | 1.49 kg |
| Additional Info | |
| Record Mode | General; Motion Detection; Intelligent; Alarm |
| Backup Method | USB Device and Network |
| Playback Mode | Instant Playback; General Playback; Event Playback; Tag Playback; Smart Playback |
| General Alarm | Motion Detection; Camera External Alarm; PIR Alarm |
| Anomaly Alarm | Error (No Disk; Disk Error; Low Space; Low Quota Space); Network Disconnection; IP Conflict; MAC Conflict; Video Loss; Video Tampering; Camera Offline |
| Intelligent Alarm | Perimeter Protection; SMD Plus |
| Alarm Linkage | Recording; Snapshot; Buzzer; Log; Preset; Email; Tour |
| Operating Interface | Web; Local GUI |
| AI by Recorder | SMD |
| AI by Camera | Perimeter Protection; SMD |
| Perimeter Performance of AI by Camera | All Channels (4 Targets/s) |
| SMD Plus by Recorder | 4 Channels; Secondary Filtering for Human and Motor Vehicle |
| SMD Plus by Camera | All Channels (8 Targets/s) |
| Multi-Screen Display | 1/4/8/9/16 |
| Operating Temperature | –10 °C to +55 °C |
| Storage Temperature | –20 °C to +60 °C |
| Operating Humidity | 10%–93% RH, Non-Condensing |
| Warranty | |
| Warranty | 2 Year (Without Adapter) |
