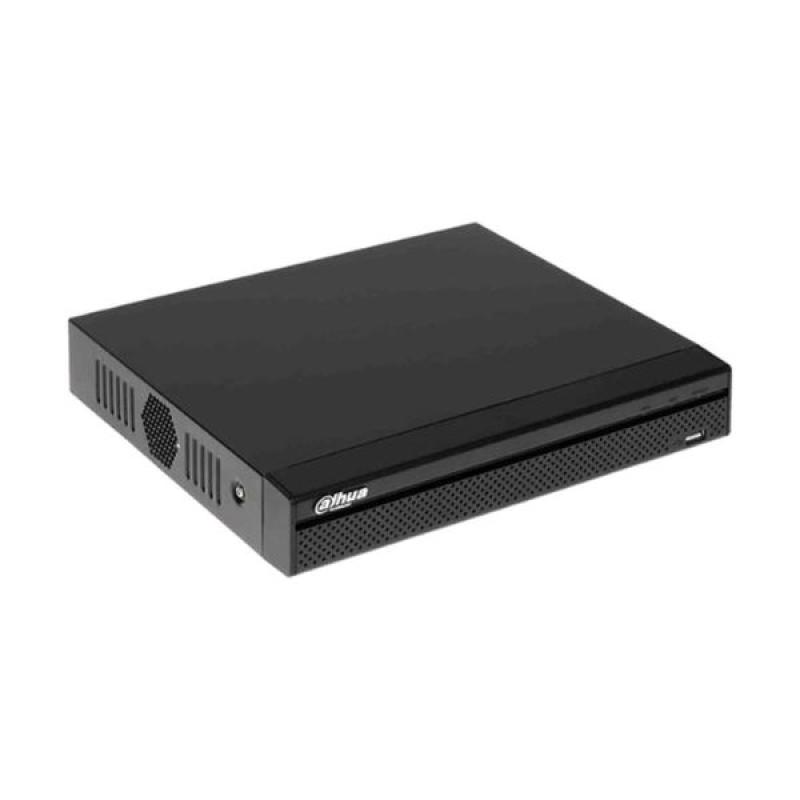

Dahua NVR1108HS-S3/H 8 Channel Network Video Recorder NVR
Key FeaturesModel - NVR1108HS-S3/HNumber of Input Channel - 08 Channel80Mbps record rate, H.265/H.264VGA/HDMI output 1080PDual Stream Support - Unmentioned
Dahua NVR1108HS-S3/H 8 Channel Network Video Recorder NVR
Quick Overview
- Model - NVR1108HS-S3/H
- Number of Input Channel - 08 Channel
- 80Mbps record rate, H.265/H.264
- VGA/HDMI output 1080P
- Dual Stream Support - Unmentioned
The Dahua NVR1108HS-S3/H 8 Channel Network Video Recorder NVR is a powerful 8-channel network recorder made for complete home, workplace, and small-to medium-sized corporate surveillance solutions. With the support of several HD IP cameras, this NVR guarantees seamless real-time recording and playback, capturing every detail with remarkable clarity. It is a very effective option for long-term video recording because of its sophisticated H.265 and H.264 video compression technology, which decreases storage consumption and network bandwidth needs.
You can connect and control up to eight cameras at once with this 8-channel NVR, providing comprehensive coverage for bigger spaces or numerous rooms. It has USB ports for easy and speedy data storage, as well as HDMI and VGA outputs for high-definition video projection. Users of any technical skill level can easily run the system thanks to its user-friendly interface, which makes setup, configuration, and everyday operation straightforward.
Another important feature of the Dahua NVR1108HS-S3/H is remote monitoring, which allows you to see recorded or live video from your PC, tablet, or smartphone via a special Dahua mobile app. This NVR is the perfect choice for anyone wishing to protect their property with a cutting-edge IP-based surveillance system because of its dependable performance, contemporary design, and simplicity of use.
Overall, the Dahua NVR1108HS-S3/H 8 Channel Network Video Recorder NVR is small and powerful, offering steady performance, crisp video output, and effective storage management. This gives both home and business users who need dependable security monitoring peace of mind.
| General Specification | |
|---|---|
| Brand | Dahua |
| Model | NVR1108HS-S3/H |
| Type | NVR |
| Video Info | |
| Number of Input Channel | 08 Channel |
| Video Compression / Format | Smart H.265+ / Smart H.264+ / H.265 / H.264 |
| Video Output (VGA) | 1 × VGA, 1920 × 1080 |
| Video Output (HDMI) | 1 × HDMI, 1920 × 1080 |
| Max. Video Recording Resolution | 1920 × 1080 |
| Audio Info | |
| Audio Input Channel (RCA) | 1 × RCA |
| Audio Compression | PCM / G.711A / G.711U / G.726 / AAC |
| Audio Output Channel | 1 × RCA |
| Recording & Decoding | |
| Dual Stream Support | No |
| Live View / Playback Resolution | 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF |
| Decoding Capability | 1-ch @ 8MP (30FPS) / 1-ch @ 5MP (30FPS) / 2-ch @ 4MP (30FPS) / 2-ch @ 3MP (30FPS) / 4-ch @ 1080P (30FPS) / 8-ch @ 720P (30FPS) |
| Synchronous Playback | 08 Channel |
| Network | |
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P |
| Wi-Fi | No |
| Network Interface (RJ45) | 1 × RJ-45 Port (10/100 Mbps) |
| PoE Interface | No |
| Auxiliary Interface | |
| Number of HDD Interface (SATA) | 1 SATA |
| Max. HDD Support | Up to 8 TB |
| Max. Storage Support | 8 TB |
| USB Port | 1 × USB 2.0 (Front), 1 × USB 2.0 (Rear) |
| Technical Info | |
| Main Processor | Embedded Processor |
| Display Split | 1 / 4 / 8 / 9 |
| Incoming Bandwidth | 80 Mbps (Access) |
| Outgoing Bandwidth | 80 Mbps (Storage), 60 Mbps (Forwarding) |
| Backup Storage | USB Device |
| Compatibility | |
| Operating System | Embedded Linux |
| Third-Party Camera Access | ONVIF, RTSP |
| Access Standard | ONVIF (Profile T / Profile S / Profile G), CGI, SDK |
| Mobile Phone Access | iDMSS (iOS), gDMSS (Android) |
| Browser | Chrome, IE9 or Above, Firefox |
| System Features | |
| Operation Interface | Web / Local GUI |
| Remote Surveillance | P2P Remote Surveillance |
| Mobile Video Playback | Video Playback on Mobile Device |
| IPC Remote Management | Remote Configuration and Management of IPCs |
| IPC Batch Management | Parameter Setting, Information Acquisition and Batch Upgrading of Same-Model IPCs |
| Network Services | DHCP, HTTP, NTP, DDNS |
| Recording & Playback | |
| Record Mode Priority | Manual Recording > Alarm Recording > Motion Detection Recording > Timed Recording |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Rewind, Play by Frame |
| Playback Features | Full Screen, Backup (Cut/File), Partial Enlargement, Audio On/Off |
| Power Info | |
| Power Supply | DC 12V, 1.5A |
| Approx. Power Consumption | < 10 W (Without HDD) |
| Max. Power | 10 W |
| Physical Description | |
| Color | Black |
| Dimensions | 260 × 225 × 47.6 mm (W × L × H) |
| Weight | 0.81 Kg |
| Installation | |
| Mounting Type | Desktop Mounting |
| Warranty | |
| Warranty | 2 Years (Without Adapter) |
