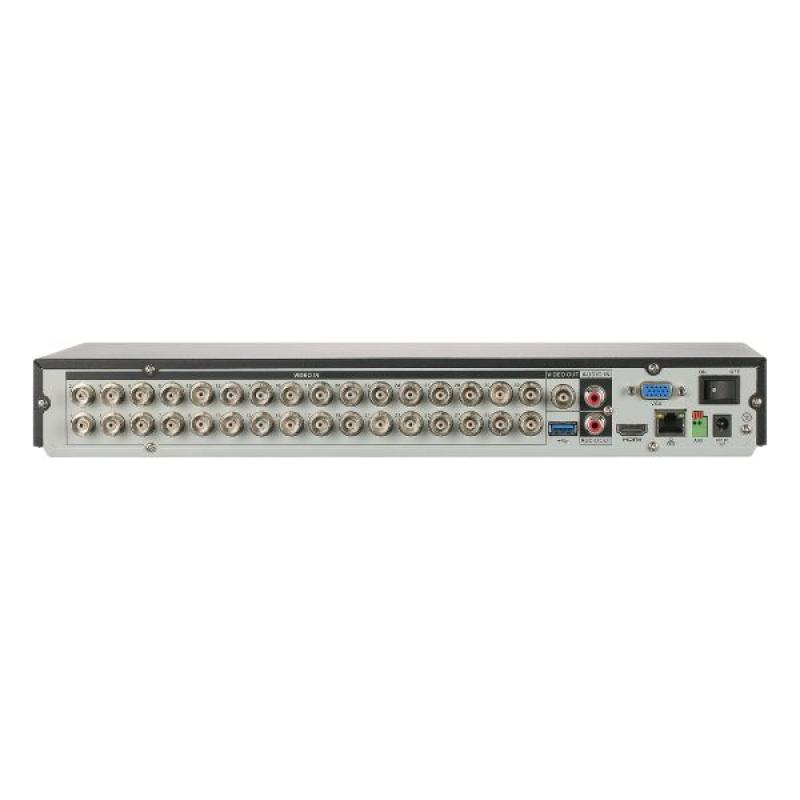

Dahua DHI-XVR4232AN-I 32 Channel Digital Video Recorder
Key Features
- Model - DHI-XVR4232AN-I
- Support HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 64Mbps Incoming Bandwidth
- Number of Input Channel - 32 Channel
- Support 2 SATA HDD, up to 16TB
Categories:
CCTV Camera / XVR / DahuaBrand:
Dahua SKU: WJ2RX-480প্রযুক্তি যেহেতু দ্রুত পরিবর্তনশীল, তাই যেকোনো সময় মূল্য, স্টক ও ডেলিভারি সম্পর্কিত তথ্য পরিবর্তিত হতে পারে। অর্ডার করার পূর্বে মূল্য, স্টক ও ডেলিভারি সম্পর্কে জানতে যোগাযোগ করুন 01821051012 নাম্বারে।
XVR Specs
- Main Processor Industrial-grade processor
- Operating System Embedded Linux
- Operating Interface Web; Local GUI
- SMD Plus by Recorder 32 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
- Analog Camera Input 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Encoding Capacity Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–7 fps)
- Dual-stream Yes
- Video Bit Rate 32 kbps–4096 kbps
- Audio Sampling 8 kHz, 16 bit
- Audio Bit Rate 64 kbps
- Video Output 1 HDMI, 1 VGA,1 TV VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multi-screen Display 1/4/8/9/16/25/36
- Third-party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression
- Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Audio Compression G.711a; G.711u; PCM
Network & Ports
- Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access iOS; Android
- Interoperability ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser Chrome; IE; Safari; Edge; Firefox
- Audio Input 1-channel RCA 32-channel BNC (Coaxial Audio)
- Audio Output 1-channel RCA
- Two-way Talk Yes (share the same audio input with the first channel)
- USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
- HDMI 1
- VGA 1
- Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
Alarm & Recording Playback
- General Alarm Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
- Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
- Intelligent Alarm SMD Plus
- Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
- Record Mode General; alarm; motion detection
- Recording Playback 1/4/9/16
- Backup Method USB device and network
General
- Power Supply 12 VDC, 4 A
- Power Consumption <12 W(without HDD)
- Product Dimensions 375.0 mm × 289.6 mm × 53.0 mm (14.76" × 11.40" × 2.09" ) (W × D × H)
- Packaging Dimensions 433.0 mm × 141.0 mm × 366.0 mm (17.05" × 5.55" × 14.41") (W × D × H)
- Operating Temperature 10 °C to +55 °C (14 °F to +131 °F)
- Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity 10%–90% (RH), non-condensing
- Net Weight 1.92 kg (4.23 lb)
- Gross Weight 3.09 kg (6.81 lb)
Warranty
- Warranty 1-year
Dahua DHI-XVR4232AN-I 32 Channel Digital Video Recorder
What is the price of Dahua DHI-XVR4232AN-I 32 Channel Digital Video Recorder?
The latest price of Dahua DHI-XVR4232AN-I 32 Channel Digital Video Recorder in Bangladesh is 2,190৳. You can buy the Dahua DHI-XVR4232AN-I 32 Channel Digital Video Recorder at the best price from our website or visit our office.
