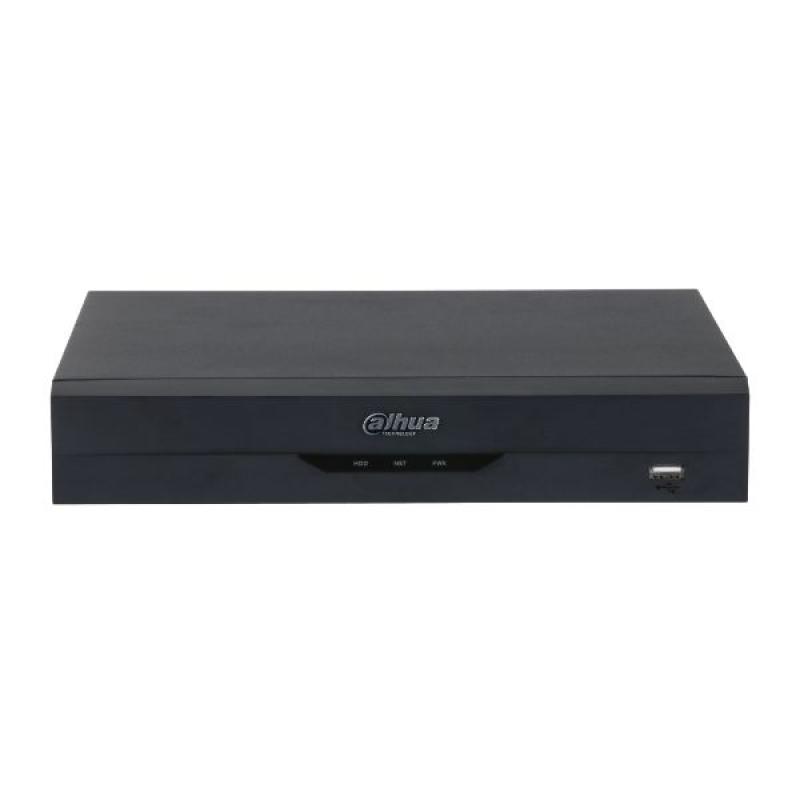

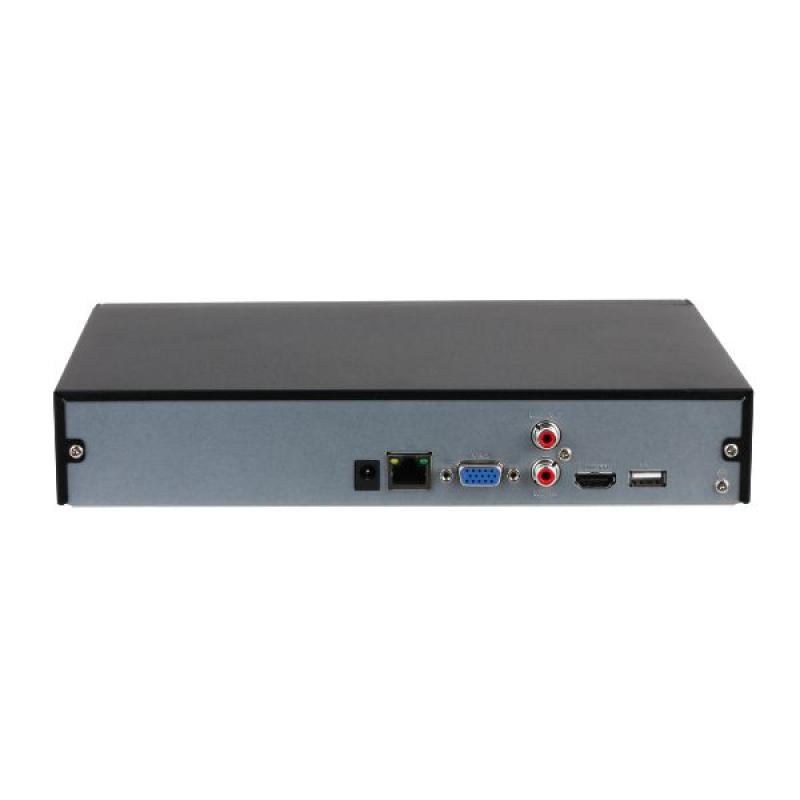

Dahua DHI-NVR1104HS-P-S3/H 04-Channel Compact Lite PoE NVR
Key FeaturesModel - DHI-NVR1104HS-P-S3/HResolution : 8MP/5MP/4MP/3MP/1080P/720P/D1/CIFNumber of Input Channel - 04 ChannelMax. Storage Support - 8TBPoE - 4 ports (IEEE802.3at/af)
Dahua DHI-NVR1104HS-P-S3/H 04-Channel Compact Lite PoE NVR
Quick Overview
- Model - DHI-NVR1104HS-P-S3/H
- Resolution : 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
- Number of Input Channel - 04 Channel
- Max. Storage Support - 8TB
- PoE - 4 ports (IEEE802.3at/af)
The Dahua DHI-NVR1104HS-P-S3/H 04-Channel Compact Lite PoE NVR is a dependable 4-channel small Lite PoE network video recorder with integrated Power over Ethernet support that was created to make contemporary security systems easier to use. IP cameras no longer require additional power sources because power and data are sent over a single cable, which saves money and time during installation. For households, workplaces, and small enterprises seeking an effective and reasonably priced security system, this makes it the perfect option.
This NVR offers seamless real-time recording and playback to clearly capture every detail, and it supports up to four high-definition IP cameras. Long-term monitoring is appropriate because of its sophisticated H.265 and H.264 video compression algorithms, which maximize storage and bandwidth utilization without sacrificing video quality. Flexible high-definition display options are provided by the HDMI and VGA outputs, while USB connections guarantee easy and speedy data backup when necessary.
Designed with user-friendliness in mind, the DHI-NVR1104HS-P-S3/H boasts an easy-to-use interface that makes setup and operation convenient, even for non-technical users. Users can take advantage of remote access with Dahua's mobile application, which enables live viewing and playback from PCs, tablets, and smartphones at any time and from any location.
Overall, the Dahua DHI-NVR1104HS-P-S3/H 04-Channel Compact Lite PoE NVR blends current technology, cost-effectiveness, and dependability in a small, powerful package. For consumers who require a reliable and simple-to-use IP surveillance system with built-in PoE functionality, the Dahua DHI-NVR1104HS-P-S3/H is a wise choice, guaranteeing safe and continuous monitoring around-the-clock.
| General Specification | |
|---|---|
| Brand | Dahua |
| Model | DHI-NVR1104HS-P-S3/H |
| Type | PoE NVR Switch |
| Video Info | |
| Access Channel | 4 Channels |
| Resolution | 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080P; 720P; D1; CIF |
| Video Output | 1 × VGA; 1 × HDMI, Simultaneous Video Output |
| Max. Video Output Resolution | 1080P |
| Multi-Screen Display | 1/4 |
| Third-Party Camera Access | ONVIF; RTSP |
| Audio Info | |
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| Audio Compression | PCM; G711A; G711U; G726; AAC |
| Recording & Decoding | |
| Decoding Capability | 1-Channel 8 MP@30 FPS; 1-Channel 5 MP@30 FPS; 2-Channel 4 MP@30 FPS; 2-Channel 3 MP@30 FPS; 4-Channel 1080P@30 FPS |
| Multi-Channel Playback | Up to 4 Channels Playback |
| Record Mode | Manual Recording > Alarm Recording > Motion Detection Recording > Timed Recording |
| Record Rate | 80 Mbps |
| Bit Rate | 16 Kbps ~ 20 Mbps Per Channel |
| Playback Function | Play; Pause; Stop; Fast Forward; Fast Backward; Rewind; Play by Frame; Full Screen; Backup (Cut/File); Partially Enlarge; Audio On/Off |
| Compression | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | PCM; G711A; G711U; G726; AAC |
| Network | |
| Network Port | 1 × RJ-45 Port (10/100 Mbps) |
| PoE Ports | 4 × RJ-45 Ports with PoE Power Supply (10/100 Mbps) |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; P2P |
| Network Bandwidth | 80 Mbps for Access; 80 Mbps for Storage; 60 Mbps for Forwarding |
| Mobile Phone Access | iDMSS (iOS); gDMSS (Android) |
| Access Standard | ONVIF (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE9 or Above; Firefox |
| MAC Address Table | 2K |
| Storage & Interface | |
| Internal HDD | 1 × SATA III Port, Up to 10 TB for Single HDD |
| Storage | Local HDD and Network |
| Backup | USB Device |
| USB Port | 2 × USB 2.0 (1 Front; 1 Rear) |
| HDMI | 1 × HDMI |
| VGA | 1 × VGA |
| Alarm & Security | |
| Alarm Input | None |
| General Alarm | Motion Detection; Privacy Masking; Video Loss; PIR Alarm; IPC Alarm |
| Anomaly Alarm | Front-End Device Offline; Storage Error; Full Storage; IP Conflict; MAC Conflict; Login Lock; Network Security Anomaly |
| Alarm Linkage | Video Recording; Snapshot; Log; Preset; Tour |
| System | |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operation Interface | Web; Local GUI |
| Interoperability | ONVIF 2.4; SDK; CGI |
| Power | |
| Power Supply | Single, DC 48 V / 2 A |
| NVR Power Consumption | <5.8 W (Without HDD) |
| PoE Power | Max. 25.5 W for Single Port; 80 W Total |
| Environment | |
| Operating Conditions | –10 °C to +55 °C (+14 °F to +131 °F), 86–106 kPa |
| Storage Conditions | 0 °C to +40 °C (+32 °F to +104 °F), 30–85% RH |
| Physical Description | |
| Dimensions | 260 × 224.9 × 47.6 mm |
| Net Weight | 0.8 kg (Without HDD) |
| Gross Weight | 1.6 kg (Without HDD) |
| Form Factor | Compact 1U |
| Warranty | |
| Warranty | 1 Year |
