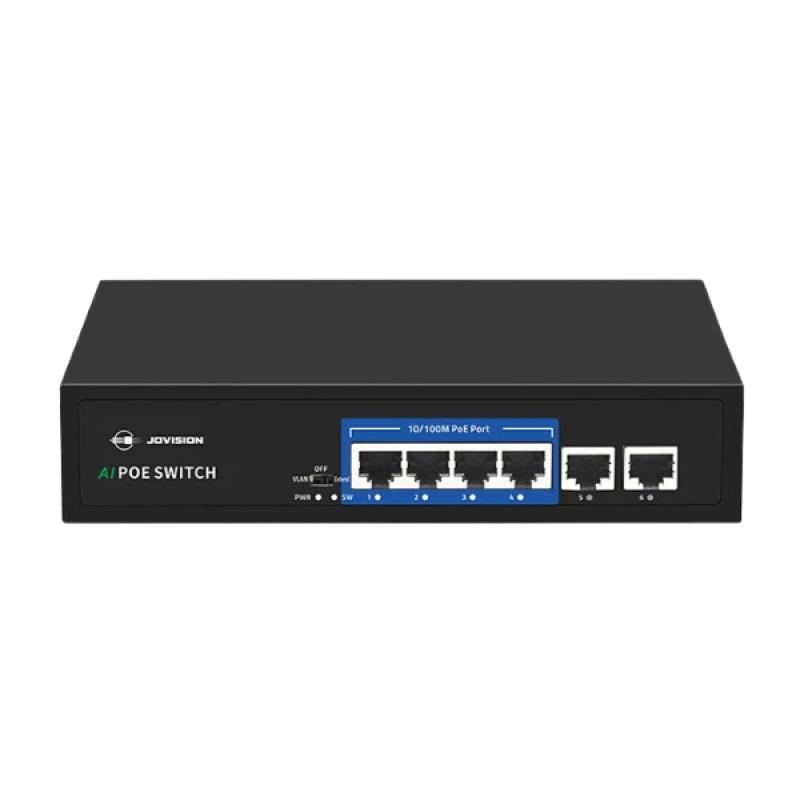

Jovision JVS-S06-4P-65W 4 Port PoE Network Switch
৳3150 ৳3800
Jovision JVS-S10-8P-120W 8 Port PoE Network Switch
৳4400 ৳5000
Chat on WhatsApp
Key Features
- Model: JVS-S10-8P-120W
- Ports: 8× PoE + 2
- Speed: 10/100 Mbps
- Mode: AI / VLAN
- Power: 120W Total
- Protection: Surge Safe
Categories:
Networking / Network Switch / PoE Switch / JovisionBrand:
Jovision SKU: UYMEZ-699প্রযুক্তি পণ্যের বাজার অস্থিতিশীল হওয়ার কারণে যেকোন সময় মূল্য পরিবর্তন হতে পারে। তাই, অর্ডার করার পূর্বে পণ্যের মূল্য, স্টক ও ডেলিভারি সম্পর্কে জিজ্ঞাসা করতে যোগাযোগ করুন 01894-683430 ই নাম্বারে
General
- Power Supply AC Input 100~240V
- Working Temparature -10°C~ 50°C
- Storage temparature -40°C~ 70°C
- Working Humidity 10% ~ 90% Rh Non-Condense
- Storage Humidity 5% ~ 95% Rh Non-Condense
- Dimension (Without Package) 200x118x44mm
Ports & Features
- PoE Ports 8
- Uplink Ports 2
- PoE Standard IEEE802.3af (15.4W),,, IEEE802.3at (30W)
Switching & Forwarding
- Switching Method Storage & Forwarding
- Switching Capacity 2Gbps
- MAC Address Table 2K
Network & Connectivity
- Ethernet IEEE 802.3
- Fast Ethernet IEEE 802.3u
- Flow Control IEEE 802.3x
- Transmission Rate 10/100Mbps adaptive
- Cable Types Cat3/4/5 (10Base-T), Cat5+ (100Base-TX)
- Max Cable Distance 100m (standard), 250m (in Extend mode at 10Mbps)
System Modes
- VLAN Mode Ports 1~8 isolated, only communicate with uplink, AI on
- OFF Mode All ports communicate, up to 100m, 10/100Mbps adaptive, AI off
- Extend Mode Up to 250m distance, 10Mbps rate, AI on
Warranty
- Warranty 1-year

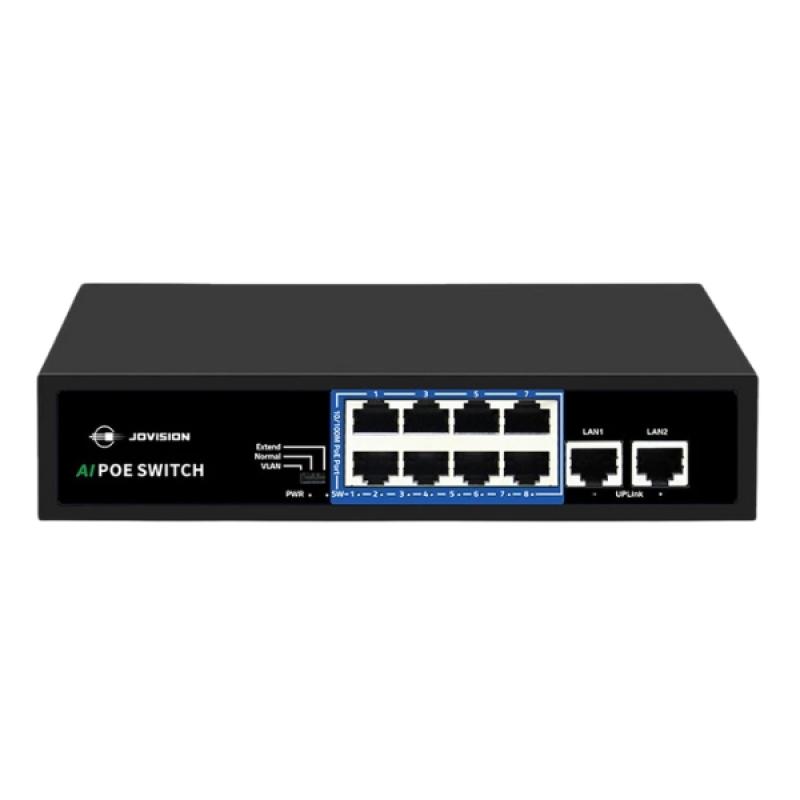

Jovision JVS-S10-8P-120W 8 Port PoE Network Switch
The Jovision JVS-S10-8P-120W 8 Port PoE Switch is designed to give reliable and stable network performance for both small and medium setups. This switch comes with eight PoE ports that can deliver both power and data through a single Ethernet cable. Because of this design, users no longer need separate power adapters for their connected devices. It reduces extra wiring, makes installation easier, and saves time in managing devices. This switch is mostly used with IP cameras, wireless access points, and VoIP phones, where stable power supply and strong network transfer are equally important. With its total power budget of 120W, the switch can easily support multiple devices at the same time without facing power shortage issues. This makes it highly useful for office networks, CCTV surveillance setups, and other environments that depend on stable PoE connectivity.
The switch not only provides power but also ensures fast and smooth data transfer. It comes with ten ports in total, out of which eight are PoE ports and two are uplink ports. The uplink ports allow direct connection with NVRs, routers, or other network switches. This makes it possible to expand the network without any difficulty and without losing data speed. Having uplink ports gives users the ability to manage larger networks with ease. The JVS-S10-8P-120W is built to maintain a consistent connection, which helps avoid network dropouts and keeps devices running smoothly. In security systems, even a few seconds of network failure can create a problem, but this switch is designed to keep things stable and dependable at all times.
One of the biggest advantages of this switch is its plug-and-play feature. It does not require any complicated configuration or technical knowledge for installation. A user simply needs to connect the Ethernet cables, and the switch automatically detects the devices and starts supplying both power and data. This makes it easy for anyone, even those without much networking knowledge, to set it up. Because of this, it is highly preferred in small offices, shops, and home surveillance systems where there may not always be a skilled technician available. Its user-friendly design reduces installation time and makes maintenance much simpler in the long run.
The JVS-S10-8P-120W is also made with strong and durable hardware to ensure long-term use. The body of the switch is designed to handle heat efficiently, which helps in preventing overheating during continuous operation. Network switches often run for 24 hours a day, and poor heat management can reduce their lifespan. But this model is built in a way that it can manage heavy workloads without performance drops. Its stable build quality ensures that users can rely on it for years without worrying about frequent replacements. This makes it cost-effective as well because once installed, it does not need constant servicing or parts replacement.
Another strong point of this switch is its smart power management system. The switch automatically adjusts power output depending on the needs of connected devices. For example, if an IP camera requires 15W, the switch only provides that much and not more. This avoids power wastage and ensures that the total 120W power is distributed properly among all connected devices. This also helps in protecting the devices because over-supply of power can damage sensitive hardware. With this switch, users can feel confident that their devices are getting safe and stable power while also receiving uninterrupted network connectivity.
The switch is especially useful in CCTV networks. In surveillance systems, IP cameras need both power and stable data transfer to record and stream high-definition video. The JVS-S10-8P-120W ensures that cameras work without interruption and that video streams remain clear. Even when multiple cameras are connected, the switch manages both data and power smoothly. The uplink ports allow the connection of these cameras to an NVR or main server so that video can be stored safely. This makes it a very practical solution for offices, shops, factories, and even homes that need advanced surveillance.
In addition to security, the switch is also effective in office networking. It allows wireless access points and VoIP phones to be connected easily without separate power sources. Businesses that rely on smooth communication and internet connectivity can benefit from this switch since it reduces cable clutter and makes the entire network easier to manage. Even if the office expands later, the switch can support additional devices without major adjustments. Its flexibility and ease of expansion make it a solid choice for growing businesses.
In conclusion, the Jovision JVS-S10-8P-120W 8 Port PoE Switch is a highly reliable and practical device for anyone who needs stable network performance with easy power distribution. It combines the functions of power delivery and data transfer in a single device, which makes it efficient and user-friendly. With strong build quality, plug-and-play design, smart power management, and uplink ports for easy expansion, it fits perfectly into both surveillance systems and office networks. It helps reduce cable clutter, improves stability, and ensures devices run smoothly without interruptions. For users who want a dependable and long-lasting networking solution, this PoE switch is a smart and cost-effective choice.
What is the price of Jovision JVS-S10-8P-120W 8 Port PoE Switch?
The latest price of Jovision JVS-S10-8P-120W 8 Port PoE Switch in Bangladesh is 4,400৳. You can buy the Jovision JVS-S10-8P-120W Switch at the best price from our website or visit our office.
